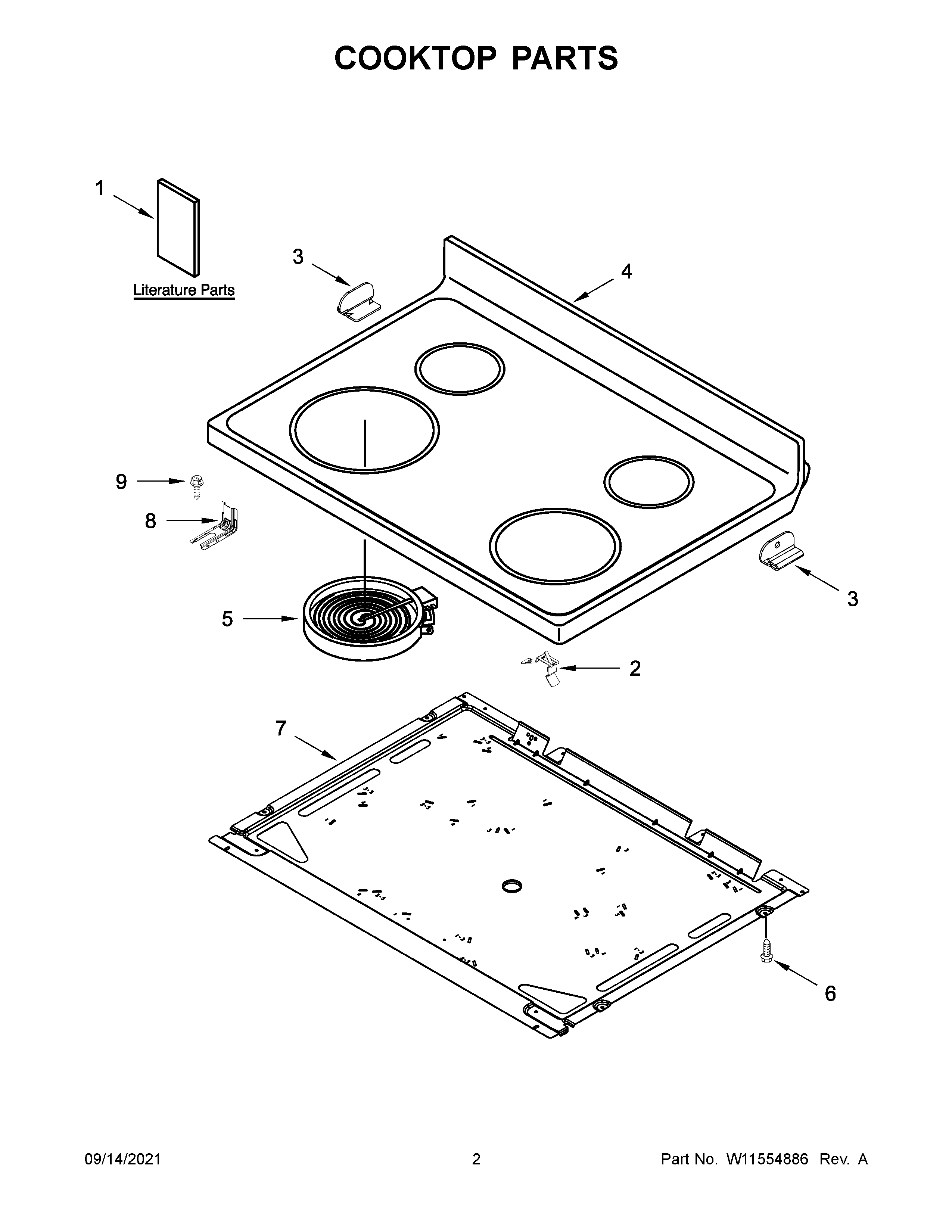

YWFE521S0HW2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172528 Whirlpool Harness Wire
NI	HARNESS, WIRE (MAIN)
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1	OWNER'S MANUAL
1B	WIRING DIAGRAM
1A	TECH SHEET
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	COOKTOP (WHITE)
5B	W11047722 Whirlpool Radiant Surface Element
5A	ELMNT-SURF
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
