YWFE521S0HW4 03 – CONTROL PANEL PARTS

YWFE521S0HW4 03 – CONTROL PANEL PARTS

Written by

in

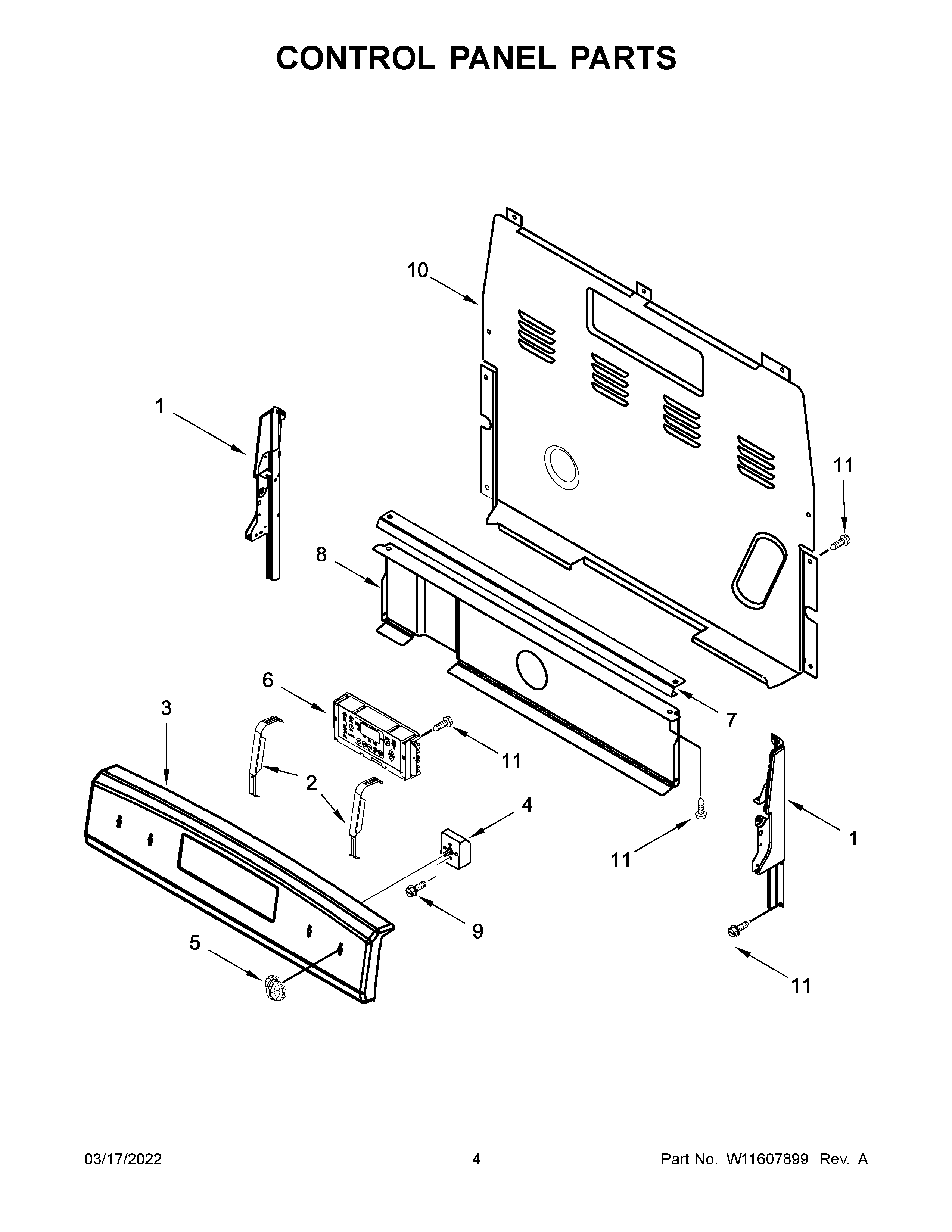

YWFE521S0HW4 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219370 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3W11180282 Whirlpool Control Panel
4BWP3149400 Whirlpool Oven Infinite Switch
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5W11158173 Whirlpool Knob Assembly
6W11602271 Whirlpool Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11SCREW
