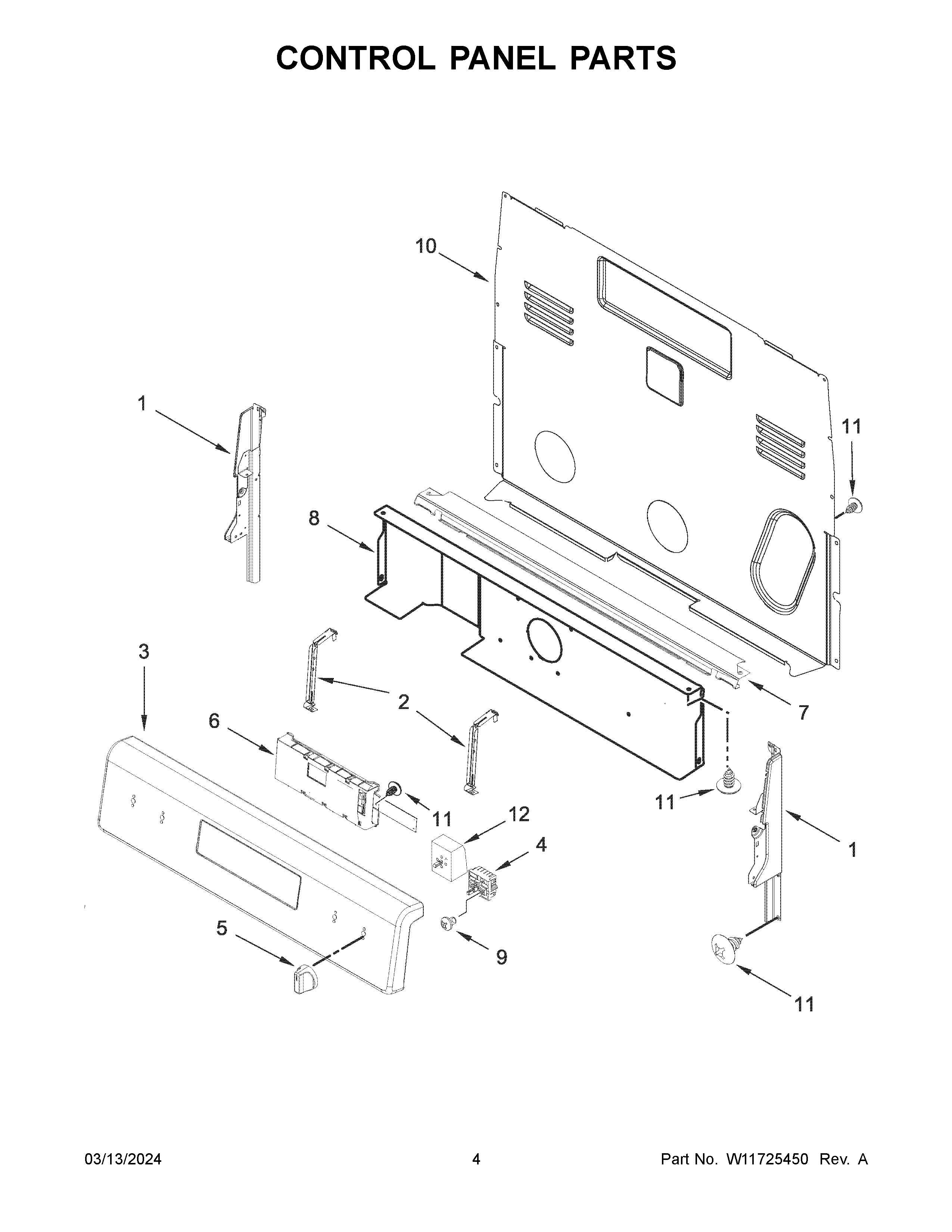

YWFE521S0HW5 03 – CONTROL PANEL PARTS

YWFE521S0HW5 03 – CONTROL PANEL PARTS

Written by

in

YWFE521S0HW5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219370 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3W11180282 Whirlpool Control Panel
4SWITCH-INF
5W11158173 Whirlpool Knob Assembly
6W11602271 Whirlpool Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11SCREW
12AWP3149400 Whirlpool Oven Infinite Switch
12WP3149404 Whirlpool Oven Surface Element Switch
