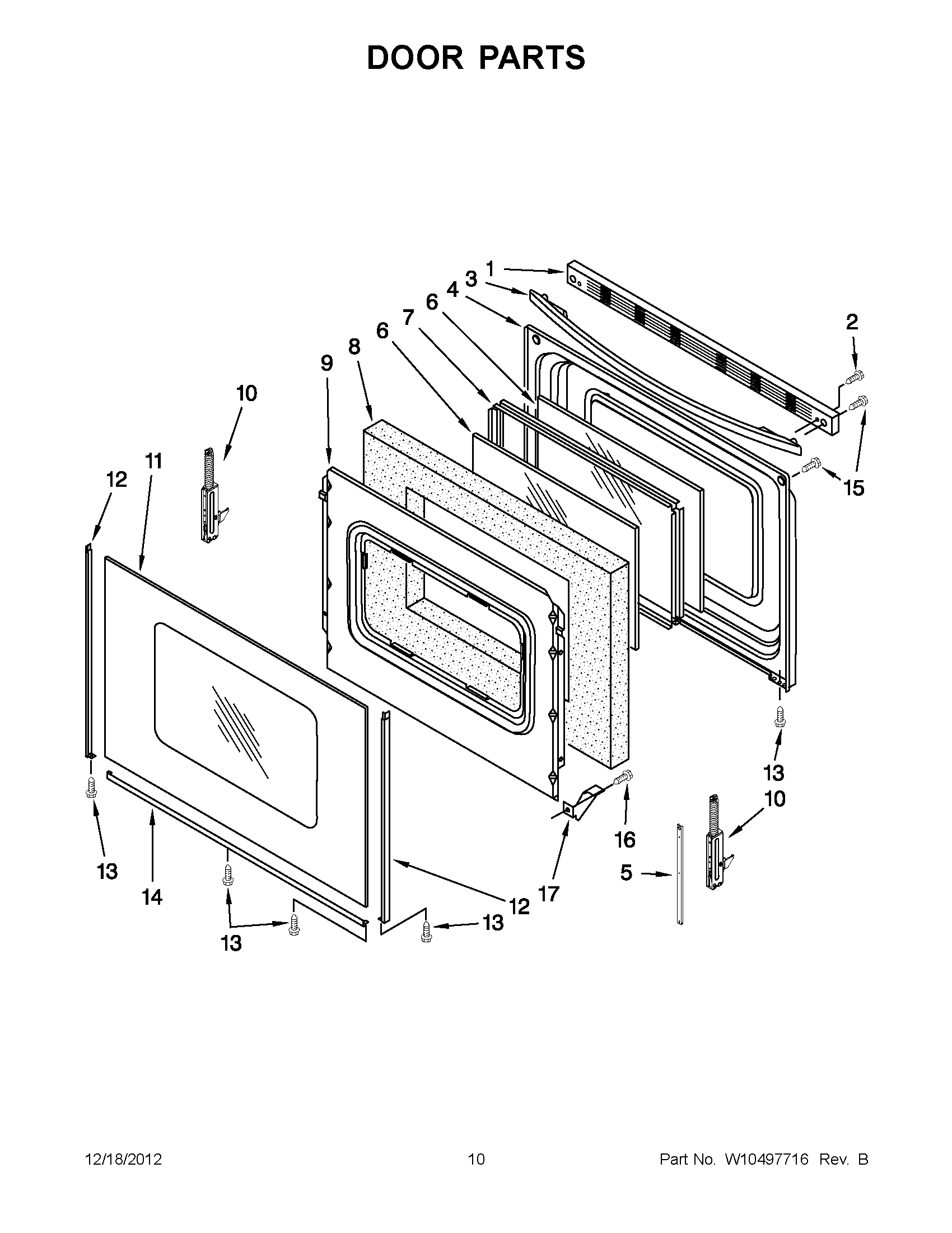

YWFE530C0AB0 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	WPW10200660 Whirlpool Range Oven Door Handle Screw
3	W10300490 Whirlpool Door Handle
3	W10300489 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W11502236 Whirlpool Door Trim
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11	WPW10409945 Whirlpool Glass Door
11	WPW10409946 Whirlpool Door Glass
11	WPW10330077 Whirlpool Door Glass
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	W10761014 Whirlpool Right Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	W10777162 Whirlpool Screw
16	WP3196175 Whirlpool Screw
17	W10137382 Whirlpool Clip
