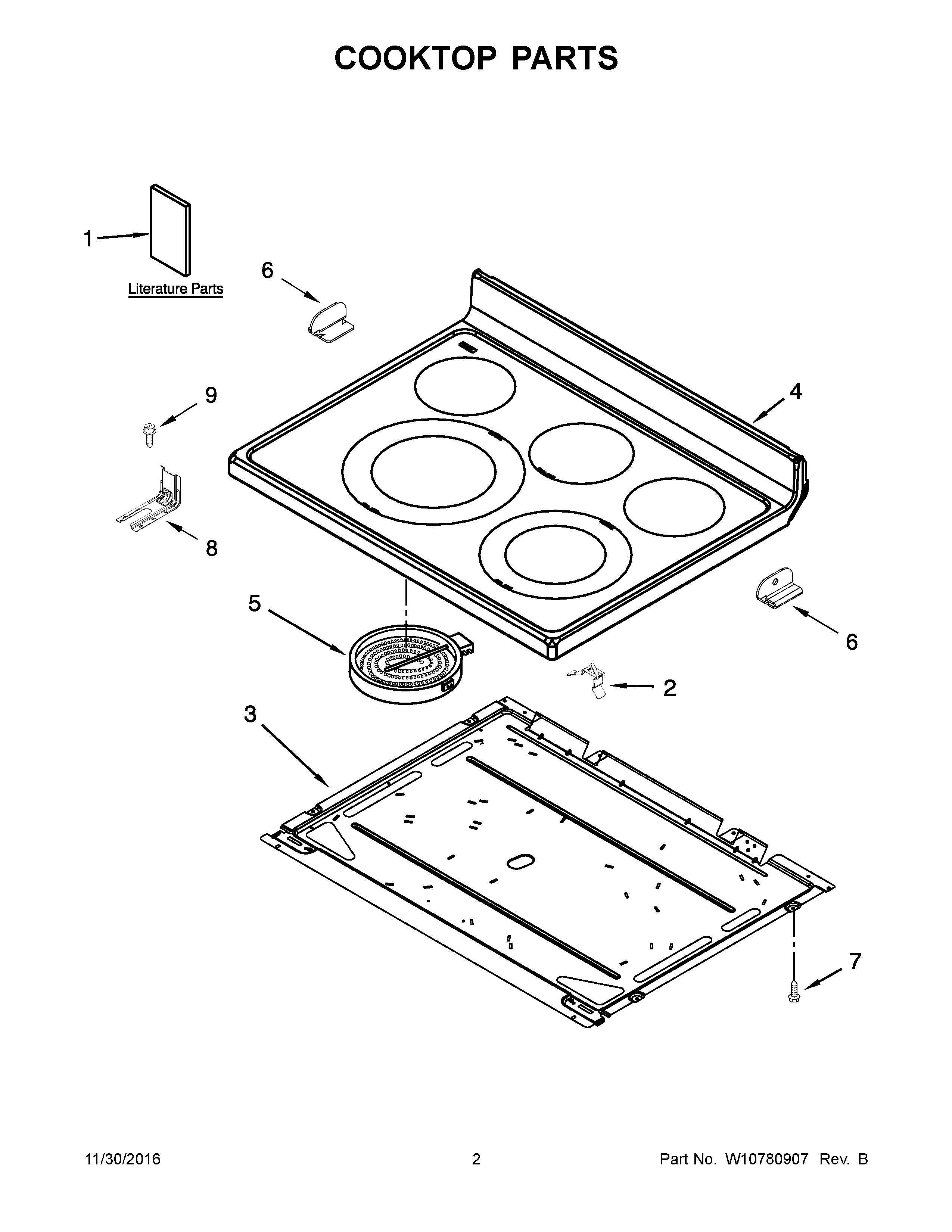

YWFE530C0EB0 02 – COOKTOP PARTS

YWFE530C0EB0 02 – COOKTOP PARTS

Written by

in

YWFE530C0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (MAIN)
NIW10084710 Whirlpool Wire Harness
NIW11134596 Whirlpool Wire Harness
NIW10183541 Whirlpool Clip Assembly
NIW11134550 Whirlpool Wire Harness
NIW11134594 Whirlpool Wire Harness
NIW10465644 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
1BSAFER COOKING TIPS (ENGLISH
1CSafer Cooking Tips (French)
1INSTRUCTIONS, INSTALLATION
1DTECH SHEET (ENGLISH)
1AUSE AND CARE GUIDE
2WPW10225448 Whirlpool Spring Assembly
3PAN
4AW10472035 Whirlpool Cooktop
4W10472036 Whirlpool Cooktop
5CW11047668 Whirlpool Surface Element
5AW11517959 Whirlpool Electric Range Radiant Surface Element
5BELMNT-SURF
5W10823727 Whirlpool Stove Right Front Surface Element
6AW10607642 Whirlpool Clip
6W10607641 Whirlpool Clip
7WP3196557 Whirlpool Screw
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
