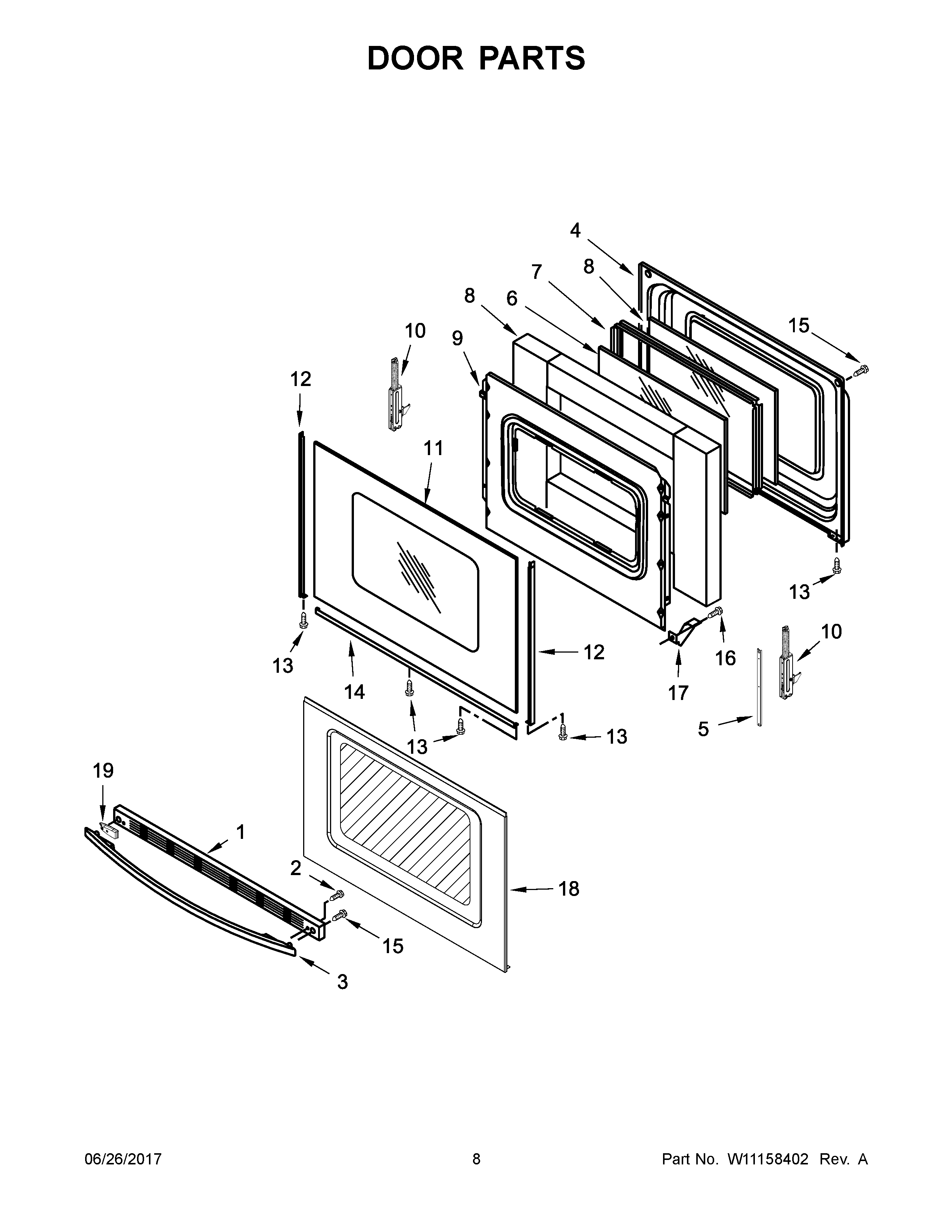

YWFE530C0EB1 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1A	W10817433 Whirlpool Vent Trim
2	WPW10200660 Whirlpool Range Oven Door Handle Screw
3B	WPW10618239 Whirlpool Door Handle
3	W10300490 Whirlpool Door Handle
3A	W10300489 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W11502236 Whirlpool Door Trim
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10A	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11A	WPW10409945 Whirlpool Glass Door
11	WPW10409946 Whirlpool Door Glass
12	W10761018 Whirlpool Dishwasher Left Door Trim
12A	W10761014 Whirlpool Right Door Trim
12C	WP8523166 Whirlpool Door Trim
12B	WP8523172 Whirlpool Left Door Trim
13	WP355214 Whirlpool Screw
14A	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
15	W10777162 Whirlpool Screw
16	WP3196175 Whirlpool Screw
17	W10137382 Whirlpool Clip
18	WPW10330077 Whirlpool Door Glass
19	WPW10410341 Whirlpool Spacer
