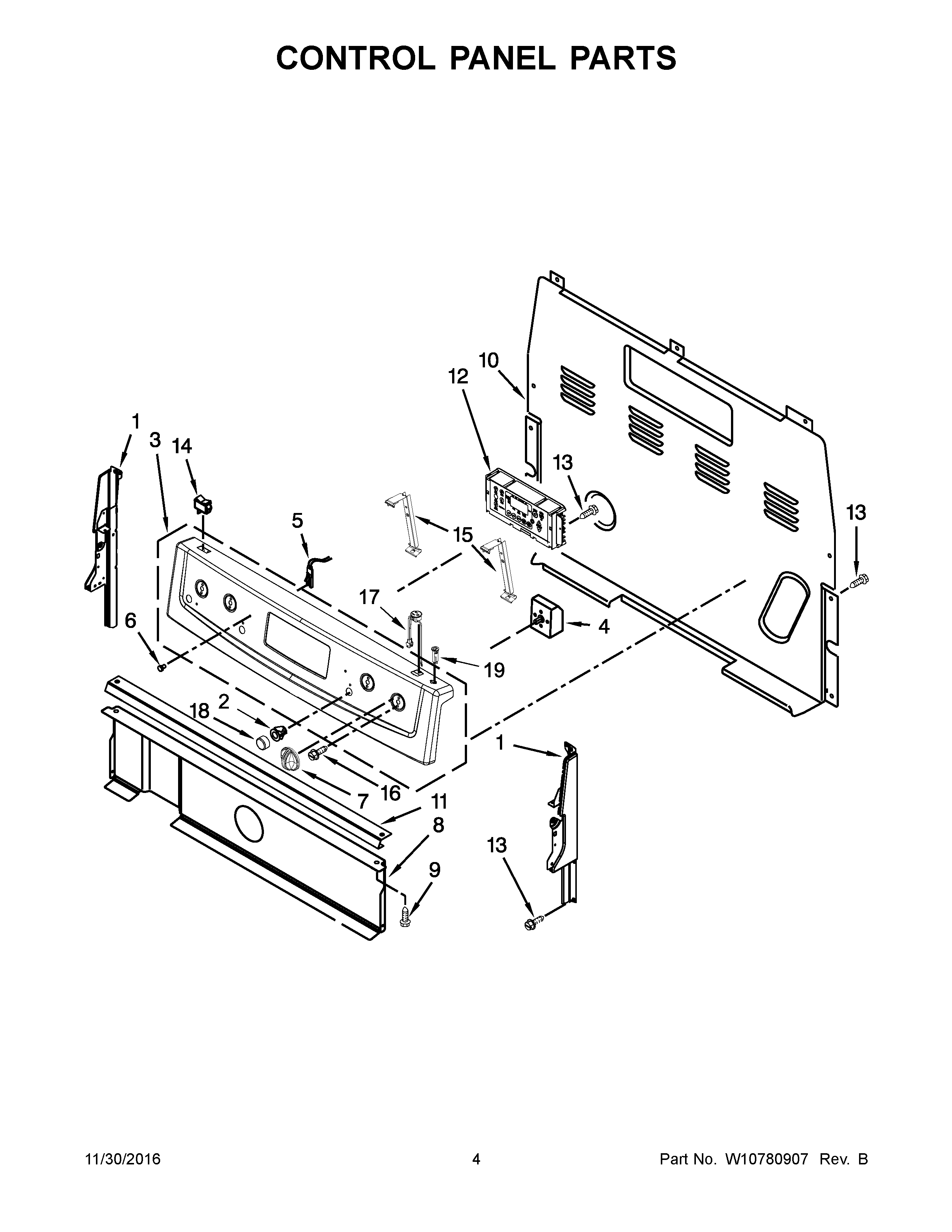

YWFE530C0ES0 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219665 Whirlpool Panel Endcap
1B	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1A	W11219664 Whirlpool Endcap Panel
2A	W10217758 Whirlpool Switch Bezel
2B	BEZEL, KEEP WARM (STAINLESS)
2	W10217760 Whirlpool Switch Bezel
3A	PANEL, CONTROL (BLACK)
3	PANEL, CONTROL (WHITE)
3B	PANEL, CONTROL (STAINLESS STEEL)
4	SWITCH-INF
4A	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7A	W10836470 Whirlpool Knob Assembly
7	W10853029 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3196557 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12B	W11122539-includeCORE Whirlpool W11122539 Washer Electronic Control Board + Core
12	W11122542-includeCORE Whirlpool W11122542 Refrigerator Electronic Control Board + Core
12A	W11122540 Whirlpool Electronic Control Board + Core
13	SCREW
14	3149360 Whirlpool Light Switch
14A	WP4314961 Whirlpool Lite Switch
15	W11230932 Whirlpool Bracket Mounting
16	WP3400882 Whirlpool Screw
17A	RECEPTACLE (BLACK)
17	W10849725 Whirlpool Electrical Outlet
18A	9758491 Whirlpool Oven Push Button
18	9757492 Whirlpool Oven Push Button
18B	W10918209 Whirlpool Push Button
19A	WP9757602 Whirlpool Breaker
19	WP9757601 Whirlpool Breaker
