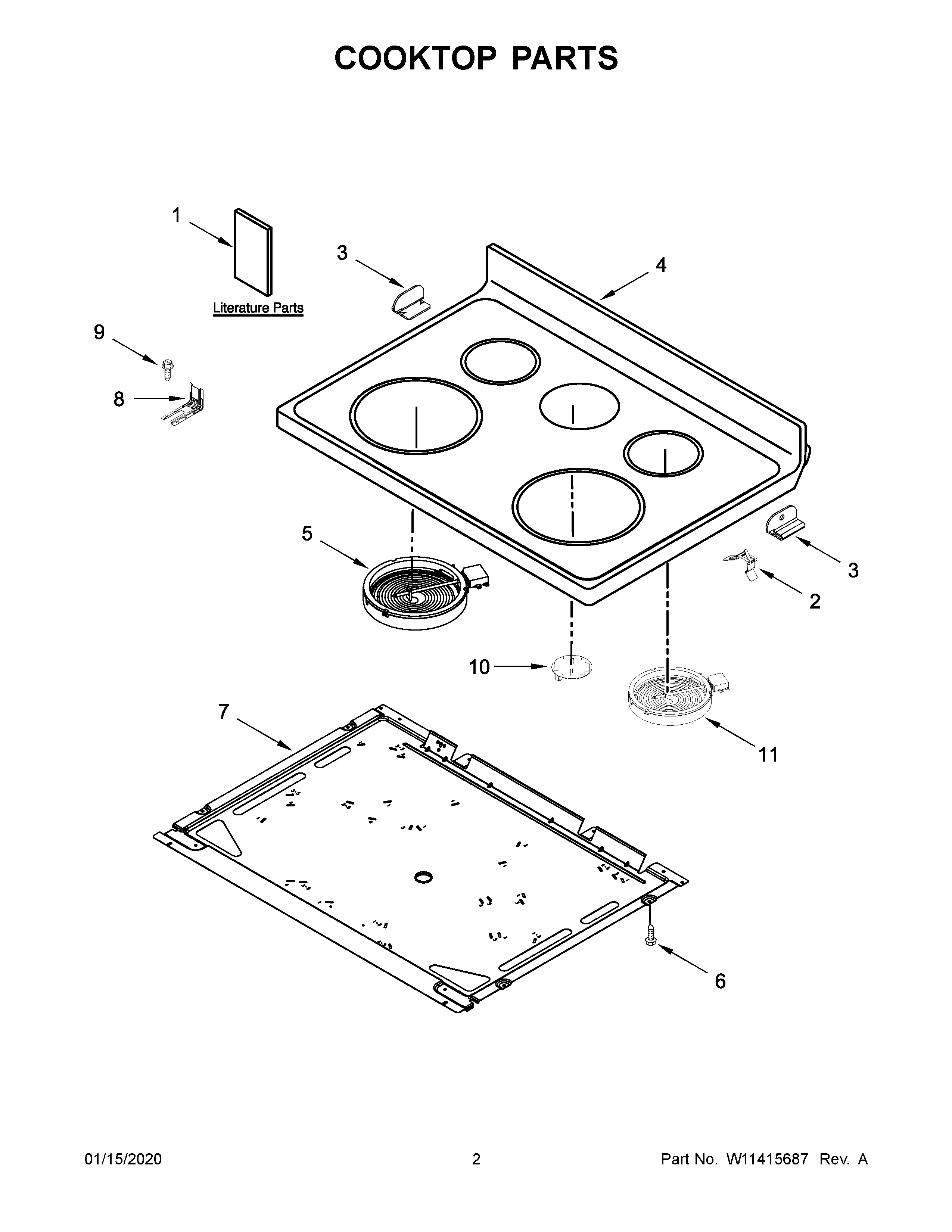

YWFE535S0JZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10183541 Whirlpool Clip Assembly
NI	W11134845 Whirlpool Wire Harness
NI	W11172528 Whirlpool Harness Wire
NI	W11675846 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	3400964 Whirlpool Oven Clip
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
1C	WIRING DIAGRAM
1B	SHEET, TECH
2	WPW10225448 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11156895 Whirlpool Cooktop Maintop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	W11041453 Whirlpool Surface Element
11	ELMNT-SURF
