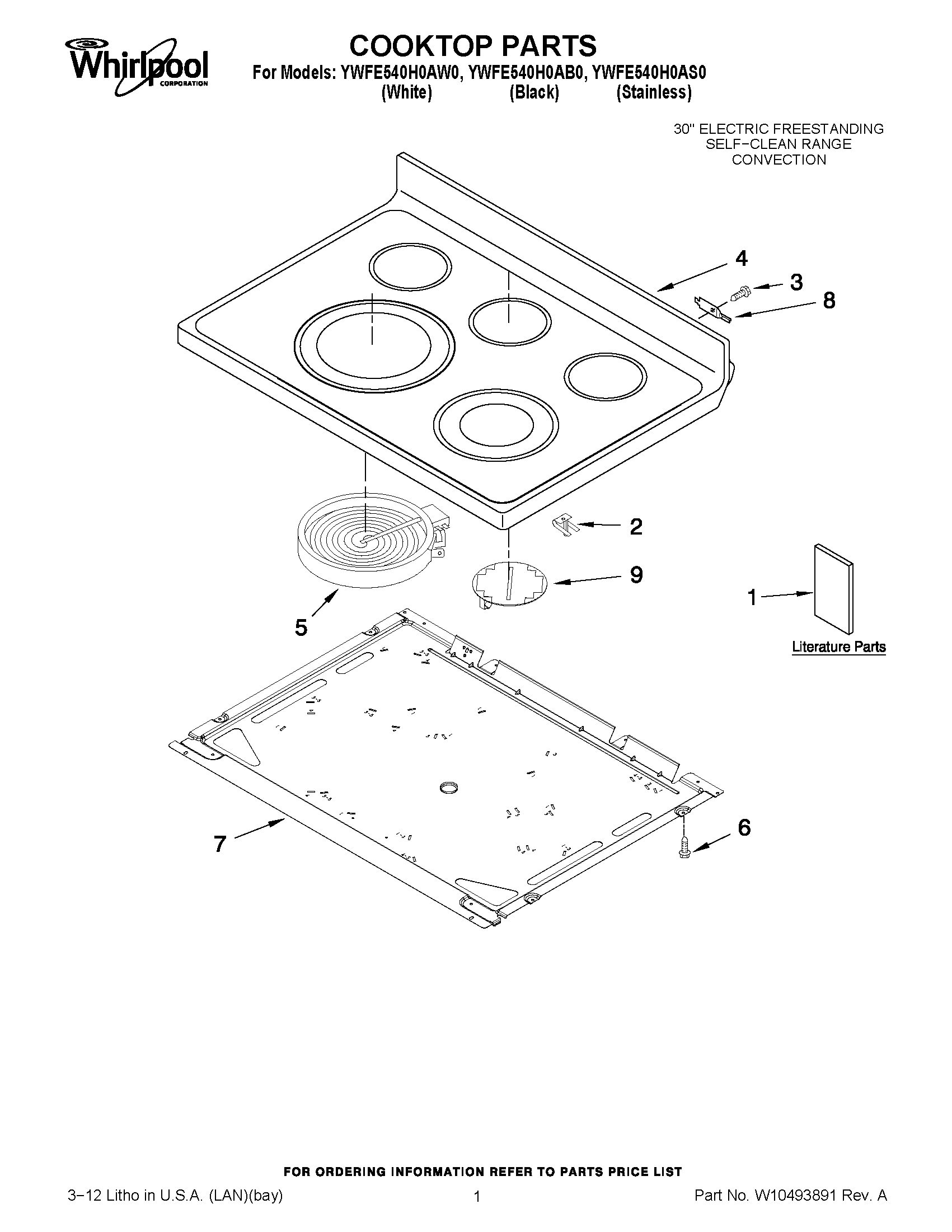

YWFE540H0AB0 01 – COOKTOP PARTS

YWFE540H0AB0 01 – COOKTOP PARTS

Written by

in

YWFE540H0AB0 01 – COOKTOP PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1OWNERS MANUAL
1INSTRUCTIONS, INSTALLATION
1QUICK START GUIDE
1QUICK START GUIDE (FRENCH)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472035 Whirlpool Cooktop
4W10472036 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5WPW10189281 Whirlpool Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
