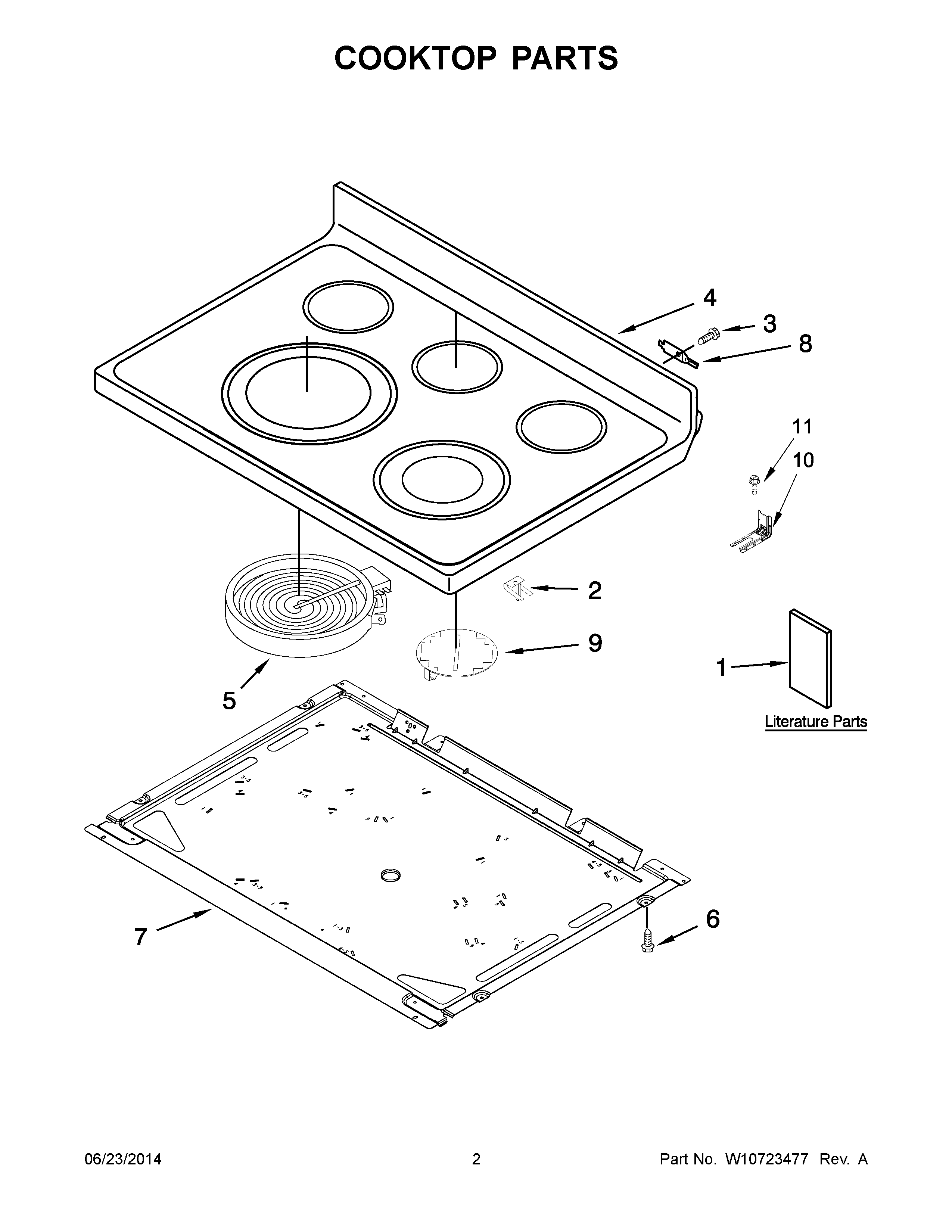

YWFE540H0BB1 02 – COOKTOP PARTS

YWFE540H0BB1 02 – COOKTOP PARTS

Written by

in

YWFE540H0BB1 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (COOKTOP RIGHT)
NIW11172424 Whirlpool Wire Harness
NIW11134594 Whirlpool Wire Harness
NIW11244557 Whirlpool Screw
NIHARNESS, WIRE (COOKTOP LEFT)
1QUICK START GUIDE (FRENCH)
1QUICK START GUIDE
1TECH SHEET (FRENCH)
1OWNERS MANUAL
1TECH SHEET (ENGLISH)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472035 Whirlpool Cooktop
4W10472036 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
