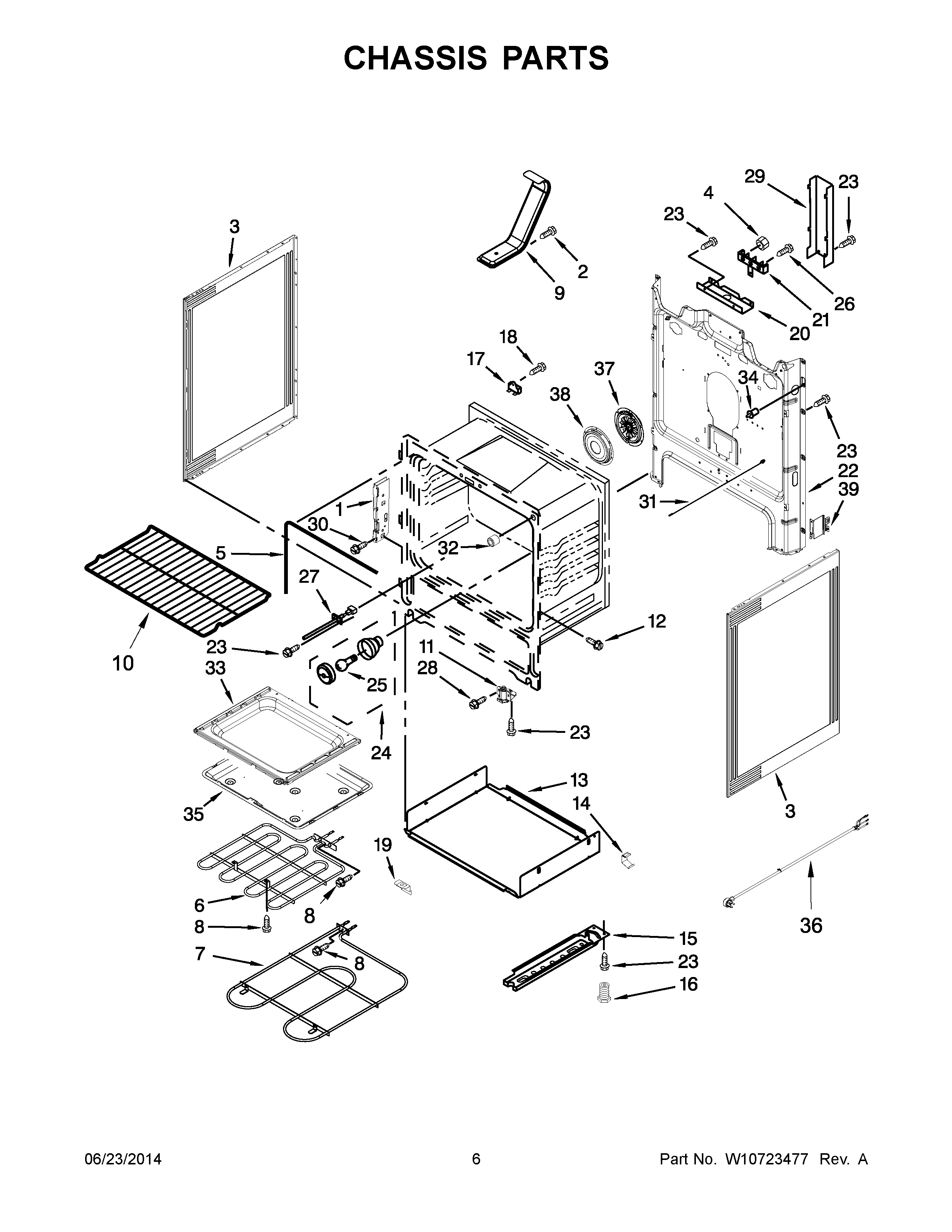

YWFE540H0BB1 04 – CHASSIS PARTS

Products

PositionProduct
NIWPW10225524 Whirlpool Insulation
NIINSULATION, STRAP
NIWPW10194393 Whirlpool Insulation
NIWPW10225523 Whirlpool Insulation
1W10647259 Whirlpool Hinge Receiver
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4Nut
5W11562931 Whirlpool Door Gasket
6W11321472 Whirlpool Broil Element
7W10779716 Whirlpool Oven Bake Element
9WPW10134285 Whirlpool Vent Tube
10WPW10531060 Whirlpool Oven Rack
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12WPW10067840 Whirlpool Screw
13W10726740 Whirlpool Heat Shield
14W10137382 Whirlpool Clip
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17WP3196548 Whirlpool Thermal Fuse
183196172 Whirlpool Oven Screw
19W10035900 Whirlpool Support Bracket
20W11728255 Whirlpool Service Bracket
21WP8203546 Whirlpool Terminal Block
22BACK, MAIN
23SCREW
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
26WP3400016 Whirlpool Screw Assembly
27WPW10181986 Whirlpool Oven Sensor
28WP3196557 Whirlpool Screw
29WPW10326122 Whirlpool Black Cover
30W10777162 Whirlpool Screw
31W11370463 Whirlpool Door Rod Assembly
32W10877054 Whirlpool Spacer Assembly
33W10789865 Whirlpool Oven Bottom
34WP9757262 Whirlpool Light Switch
35W11379357 Whirlpool Overflow Pan
36W11226497 Whirlpool Power Cord
37W11527111 Whirlpool Convection Fan
38WPW10346154 Whirlpool Cover Assembly
39W10273002 Whirlpool Support Bracket
