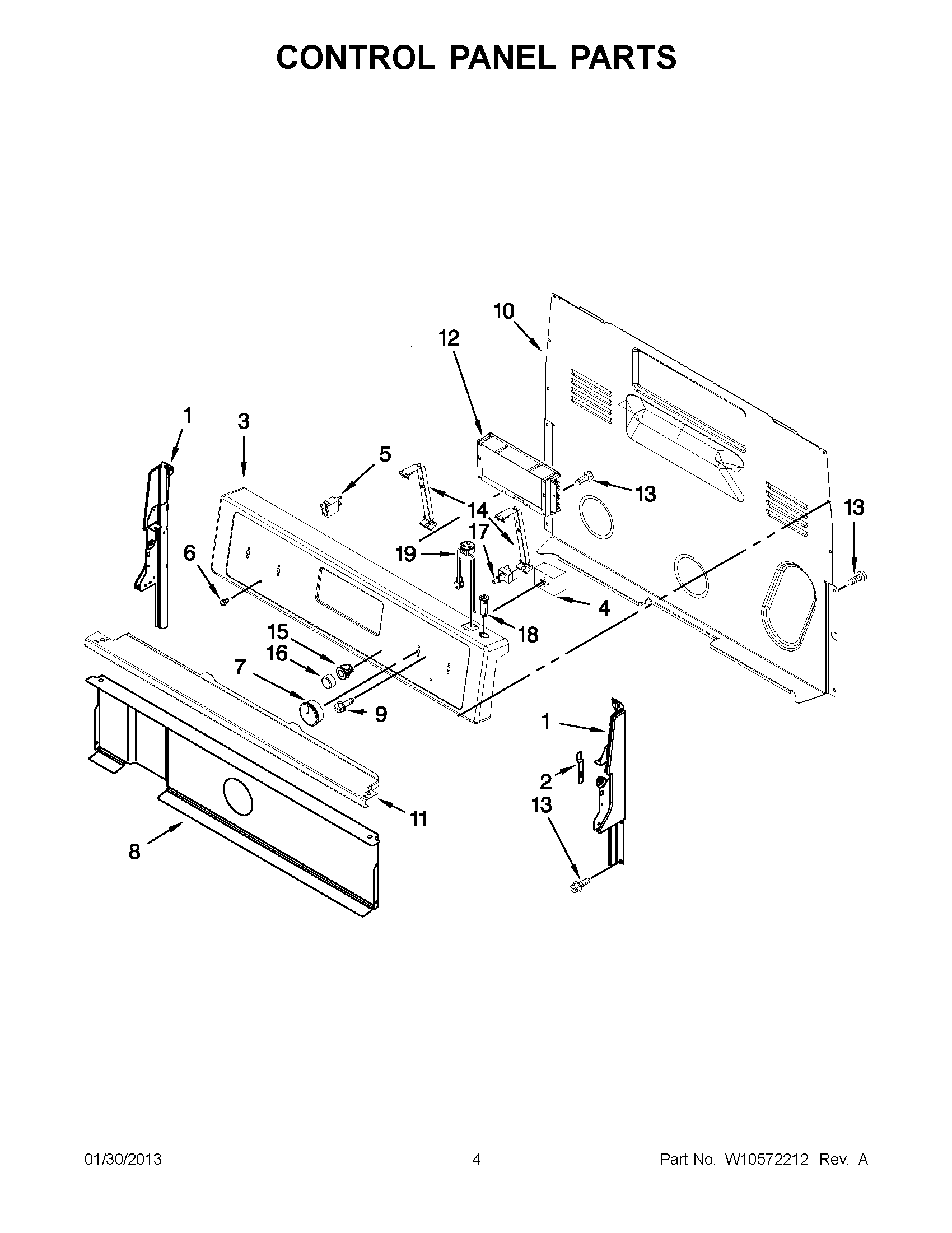

YWFE540H0BS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (STAINLESS)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WPW10490036 Whirlpool Knob
7	WPW10430806 Whirlpool Knob
7	W10490035 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10586735-includeCORE Whirlpool WPW10586735 Washer Electronic Control Board + Core
12	WPW10586736-includeCORE Whirlpool WPW10586736 Electronic Control Board + Core
12	WPW10586737-includeCORE Whirlpool WPW10586737 Refrigerator Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	W10217758 Whirlpool Switch Bezel
15	W10217760 Whirlpool Switch Bezel
15	BEZEL, KEEP WARM (STAINLESS)
16	9758491 Whirlpool Oven Push Button
16	W10918209 Whirlpool Push Button
16	9757492 Whirlpool Oven Push Button
17	WP8272820 Whirlpool PB Switch
18	WP9757602 Whirlpool Breaker
18	WP9757601 Whirlpool Breaker
19	W10849725 Whirlpool Electrical Outlet
19	W10861164 Whirlpool Electrical Outlet
