YWFE540H0BS0 05 – DOOR PARTS

YWFE540H0BS0 05 – DOOR PARTS

Written by

in

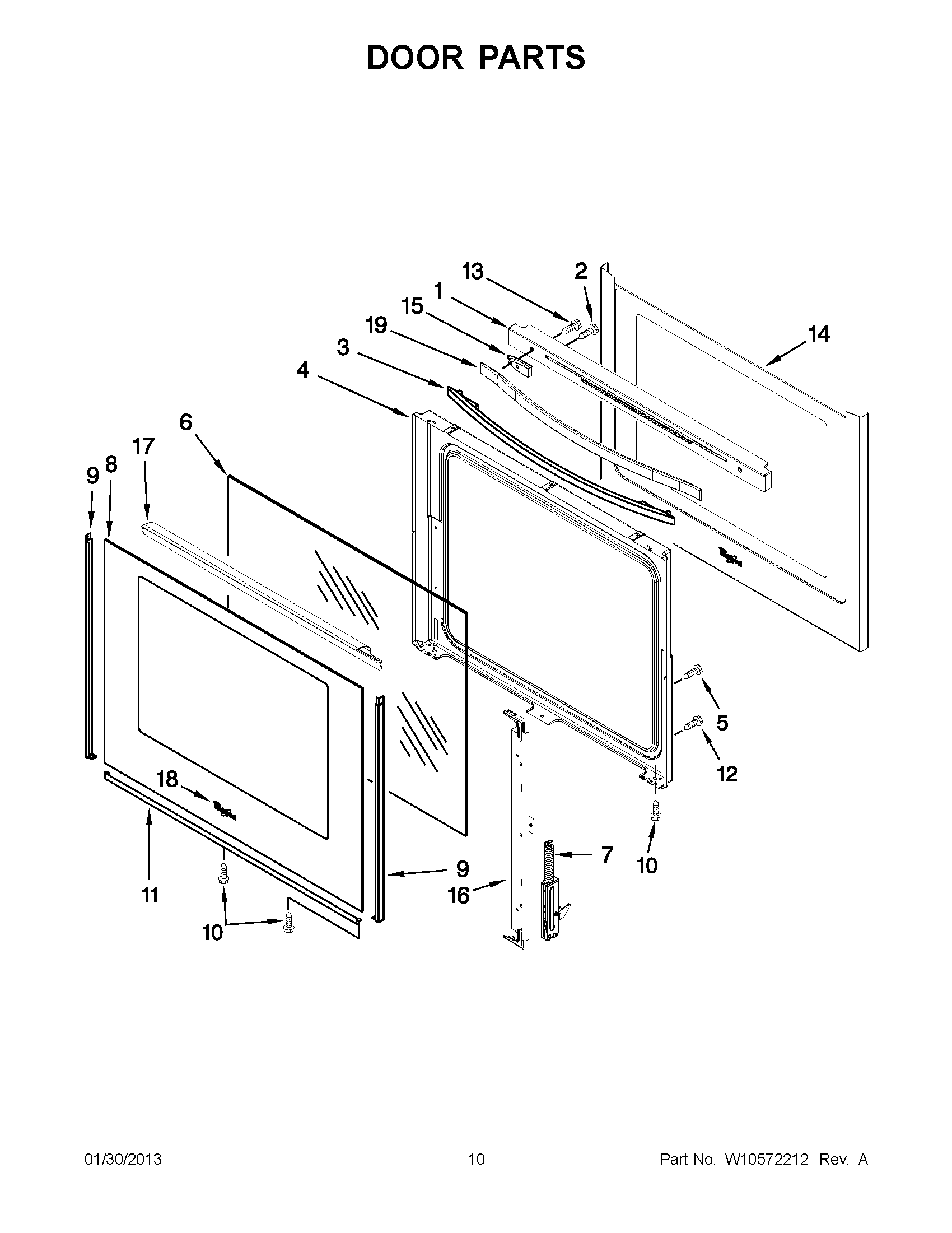

YWFE540H0BS0 05 – DOOR PARTS

Products

PositionProduct
1WPW10335331 Whirlpool Trim Vent
1W10294855 Whirlpool Vent Trim
1W10335333 Whirlpool Vent Trim
3W10300489 Whirlpool Door Handle
3W10300490 Whirlpool Door Handle
4WPW10297318 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WPW10300487 Whirlpool Door Glass
7WPW10440013 Whirlpool Door Hinge
8WPW10333987 Whirlpool Door Glass
8WPW10333988 Whirlpool Door Glass
9W10334004 Whirlpool Door Trim
9W10334003 Whirlpool Door Trim
10WP3196175 Whirlpool Screw
11WPW10333990 Whirlpool Glass Bracket
11W10334031 Whirlpool Glass Bracket
12W10777162 Whirlpool Screw
13WPW10317886 Whirlpool Screw
14WPW10289144 Whirlpool Door Glass
15WPW10254688 Whirlpool Spacer
16W11116956 Whirlpool Support Bracket
17W10294853 Whirlpool Mounting Bracket
18W11178521 Whirlpool Dishwasher Nameplate
19WPW10618239 Whirlpool Door Handle
