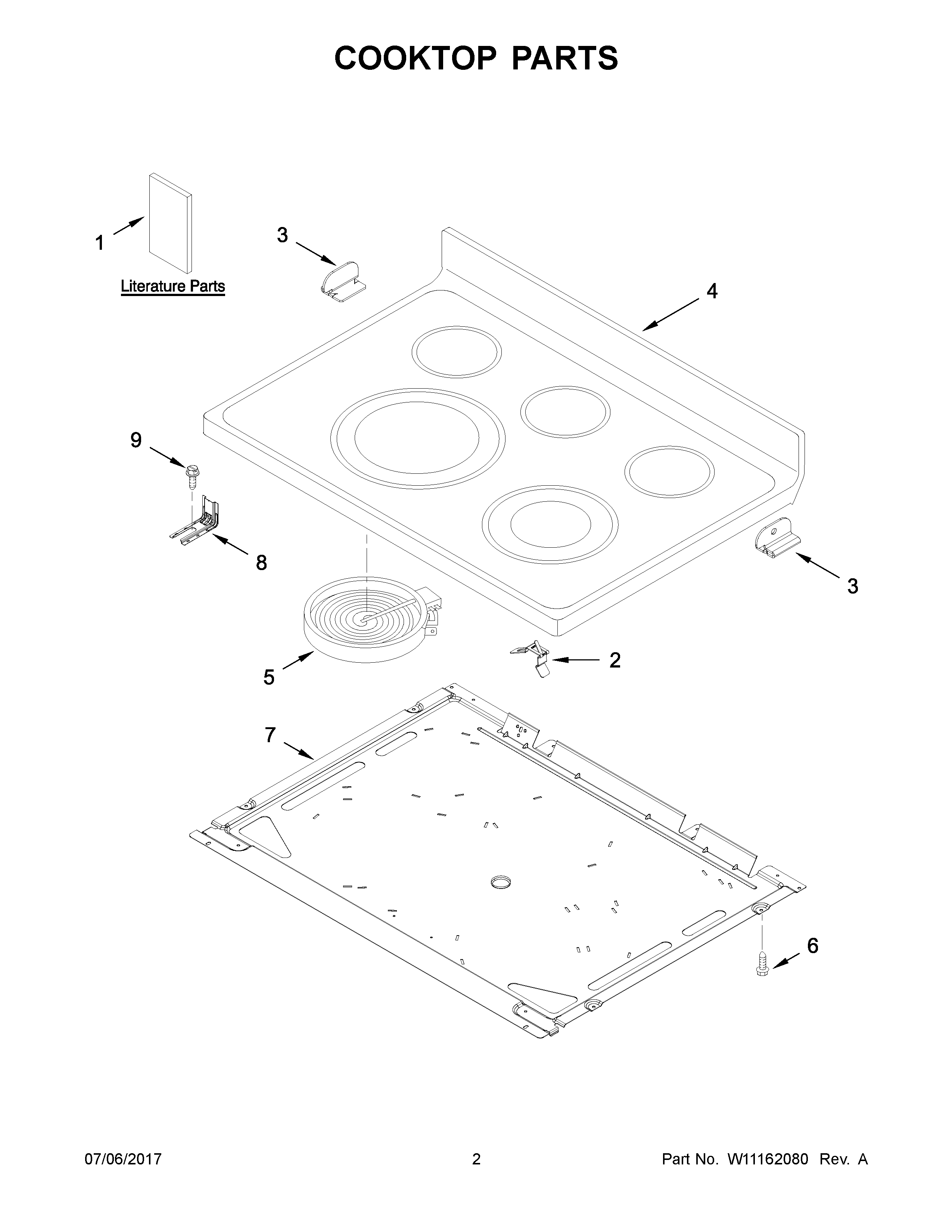

YWFE540H0ES1 02 – COOKTOP PARTS

YWFE540H0ES1 02 – COOKTOP PARTS

Written by

in

YWFE540H0ES1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (COOKTOP RIGHT)
NIW11172424 Whirlpool Wire Harness
NIW11134594 Whirlpool Wire Harness
NIHARNESS, WIRE (COOKTOP LEFT)
NIHARNESS, MAIN
1BTECH SHEET (ENGLISH)
1CTECH SHEET (FRENCH)
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1DQUICK START GUIDE
1GSafer Cooking Tips (French)
1FSAFER COOKING TIPS (ENGLISH
1EQUICK START GUIDE (FRENCH)
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W10472035 Whirlpool Cooktop
5CW11047668 Whirlpool Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
5BW11517959 Whirlpool Electric Range Radiant Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
