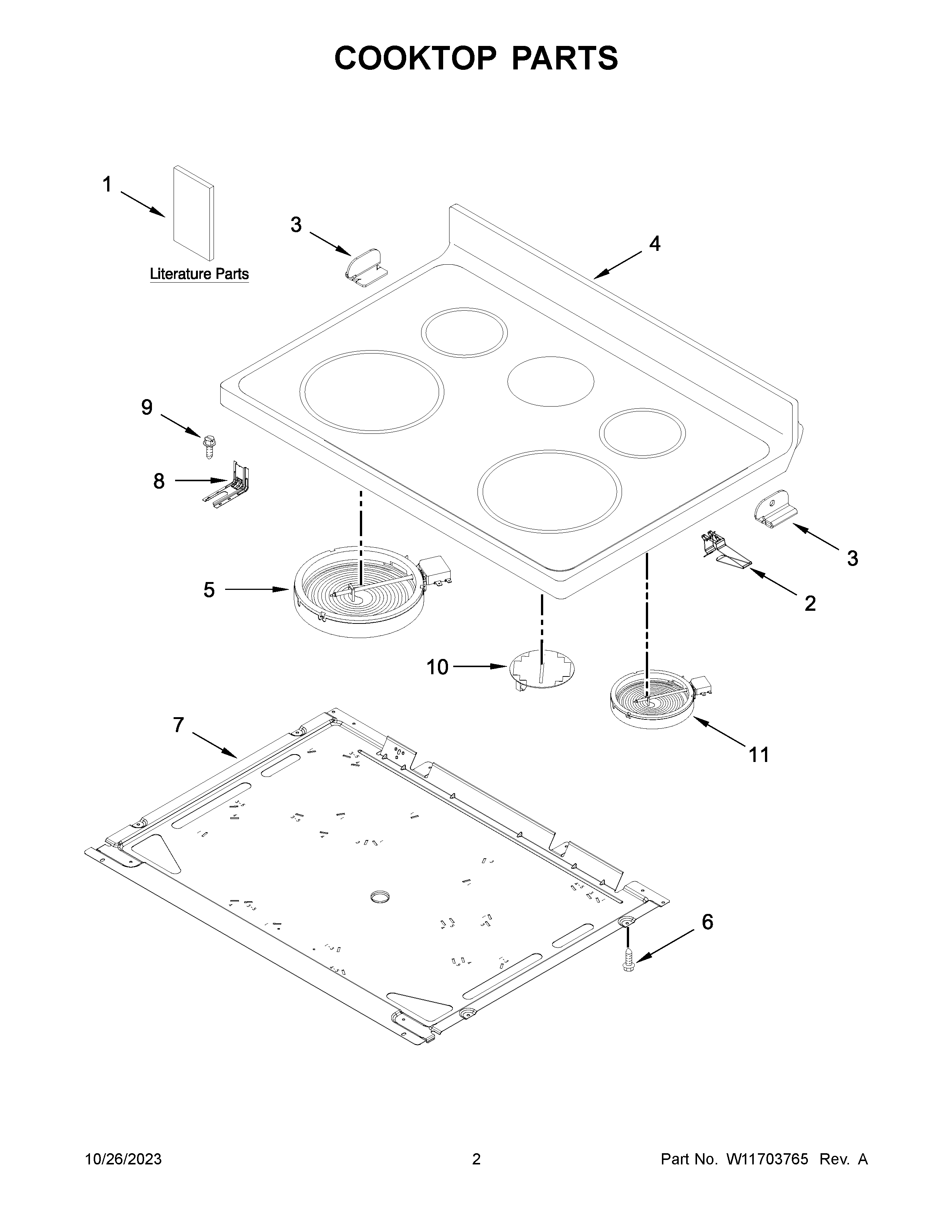

YWFE550S0LV3 02 – COOKTOP PARTS

Products

PositionProduct
NIW10183541 Whirlpool Clip Assembly
NIW11134845 Whirlpool Wire Harness
NIW11172528 Whirlpool Harness Wire
NIW11536419 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIHARNESS, WARM ZONE
NI3400964 Whirlpool Oven Clip
NIFOLLOWING PARTS NOT ILLUSTRATED
1OWNERS MANUAL
1AQUICK START GUIDE
1BTECH SHEET
2W11663556 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11183708 Whirlpool Maintop Assembly
5W10823727 Whirlpool Stove Right Front Surface Element
5AW11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10ELEMENT, WARM ZONE (CENTER)
11ELMNT-SURF
