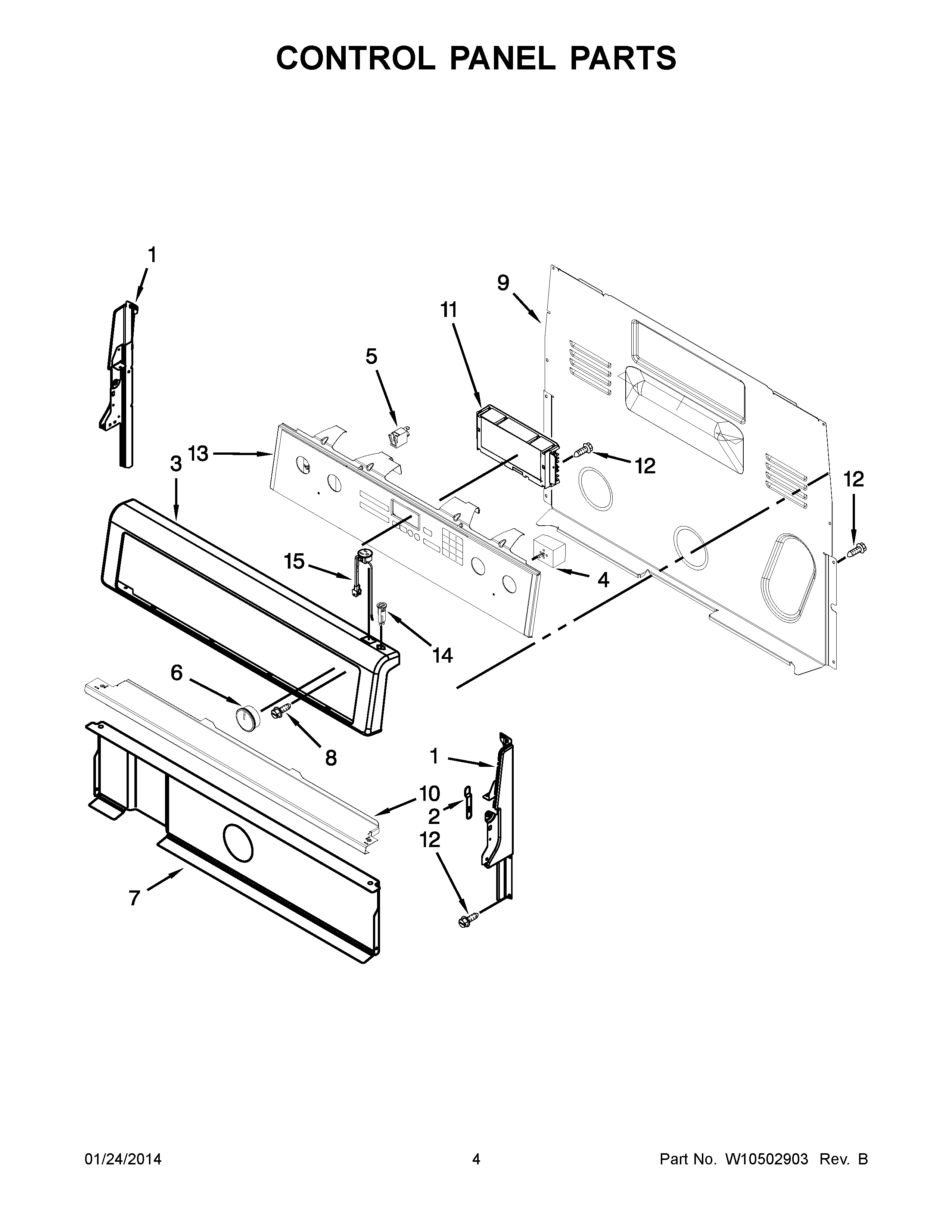

YWFE710H0AW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	WPW10318553 Whirlpool Control Panel
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (WHITE)
4	WPW10411934 Whirlpool Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WPW10430806 Whirlpool Knob
6	WPW10490036 Whirlpool Knob
6	W10490035 Whirlpool Knob Assembly
7	W10134247 Whirlpool Heat Shield
8	WP3400882 Whirlpool Screw
9	WP8272473 Whirlpool Rear Cover
10	W10525121 Whirlpool Control Bracket
11	WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12	SCREW
13	W10347930 Whirlpool Membrane Switch
13	OVERLAY, ACTIVE (BLACK)
13	OVERLAY, ACTIVE (WHITE)
14	WP9757601 Whirlpool Breaker
14	WP9757602 Whirlpool Breaker
15	W10861164 Whirlpool Electrical Outlet
15	W10849725 Whirlpool Electrical Outlet
