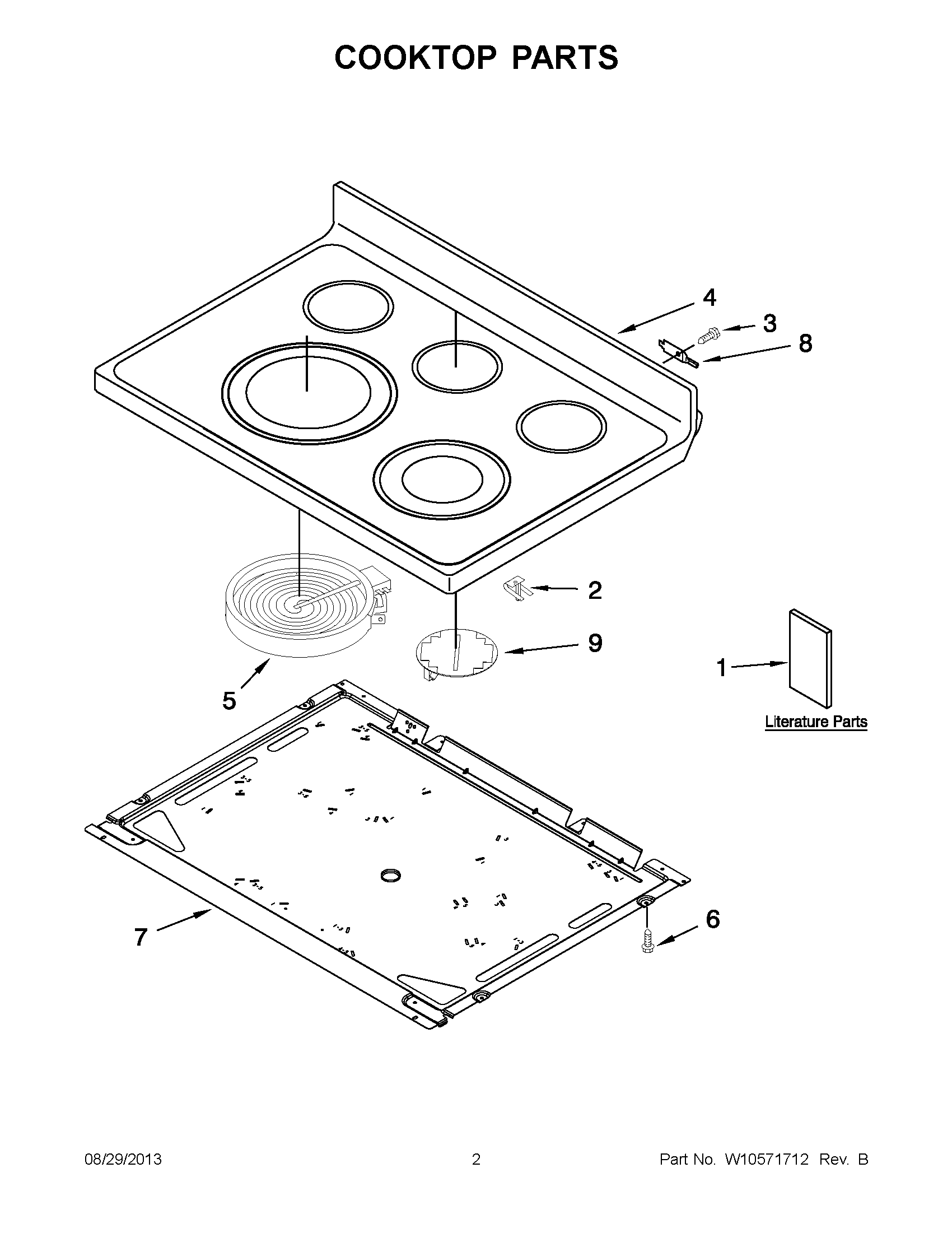

YWFE710H0BB0 02 – COOKTOP PARTS

YWFE710H0BB0 02 – COOKTOP PARTS

Written by

in

YWFE710H0BB0 02 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1TECH SHEET (ENGLISH)
1OWNERS MANUAL
1QUICK START GUIDE (FRENCH)
1QUICK START GUIDE
1TECH SHEET (FRENCH)
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10472038 Whirlpool Oven Cooktop
4W10472039 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5WPW10342780 Whirlpool Surface Element
5WPW10189281 Whirlpool Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
9W11047668 Whirlpool Surface Element
