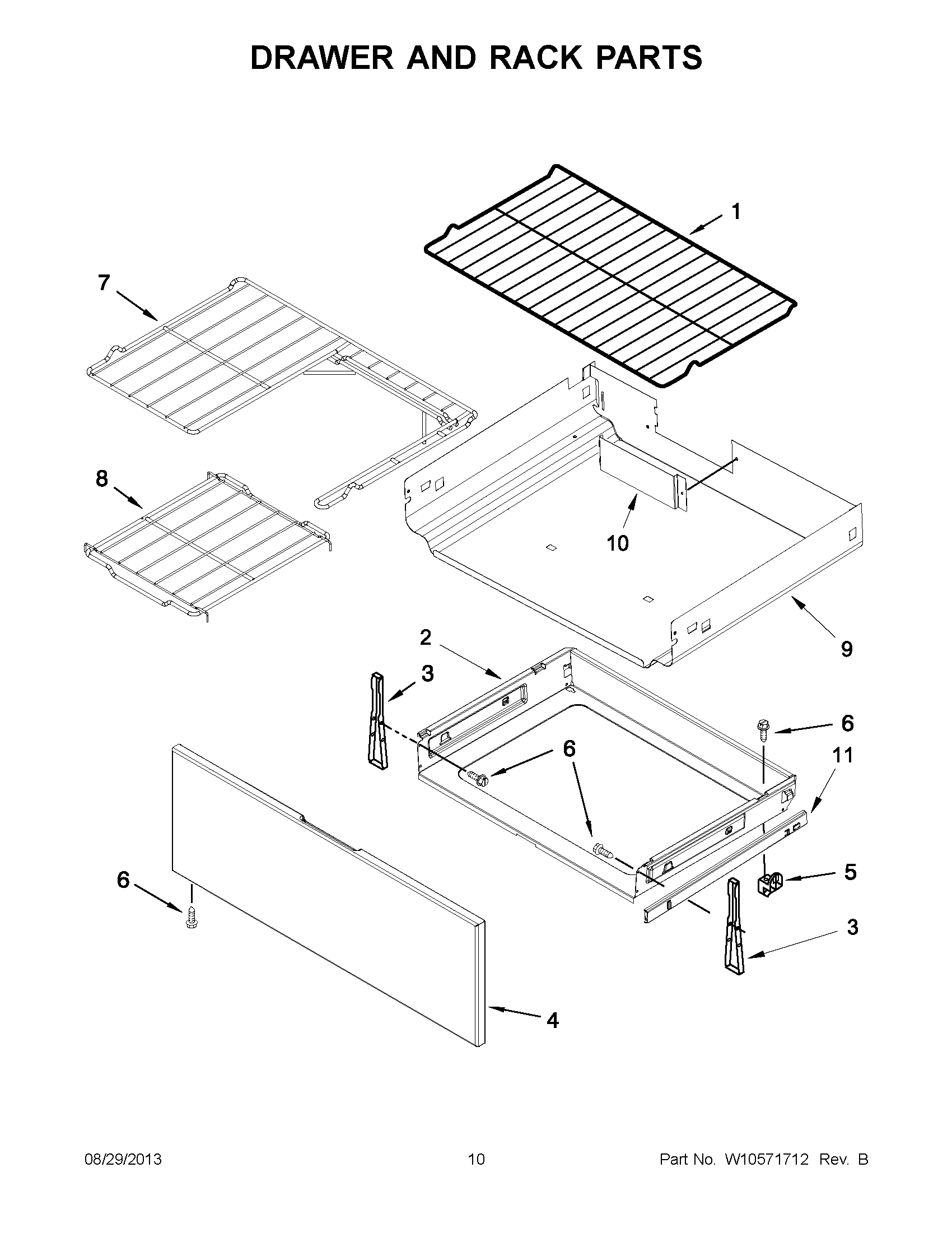

YWFE710H0BB0 06 – DRAWER AND RACK PARTS

YWFE710H0BB0 06 – DRAWER AND RACK PARTS

Written by

in

YWFE710H0BB0 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2W10813962 Whirlpool Utility Drawer
3WPW10318027 Whirlpool Mounting Bracket
4W11297555 Whirlpool Drawer Panel
4W11280103 Whirlpool Drawer Panel
4W11297552 Whirlpool Drawer Panel
5GLIDE-RANGE DRAWER KIT
6WP3196175 Whirlpool Screw
7W10205526 Whirlpool Oven Rack
8W10186592 Whirlpool Oven Rack Assembly
9W10634260 Whirlpool Utility Drawer
10W10325438 Whirlpool Cover Panel
11WPW10441804 Whirlpool Drawer Slide
11WPW10441805 Whirlpool Slide Drawer
