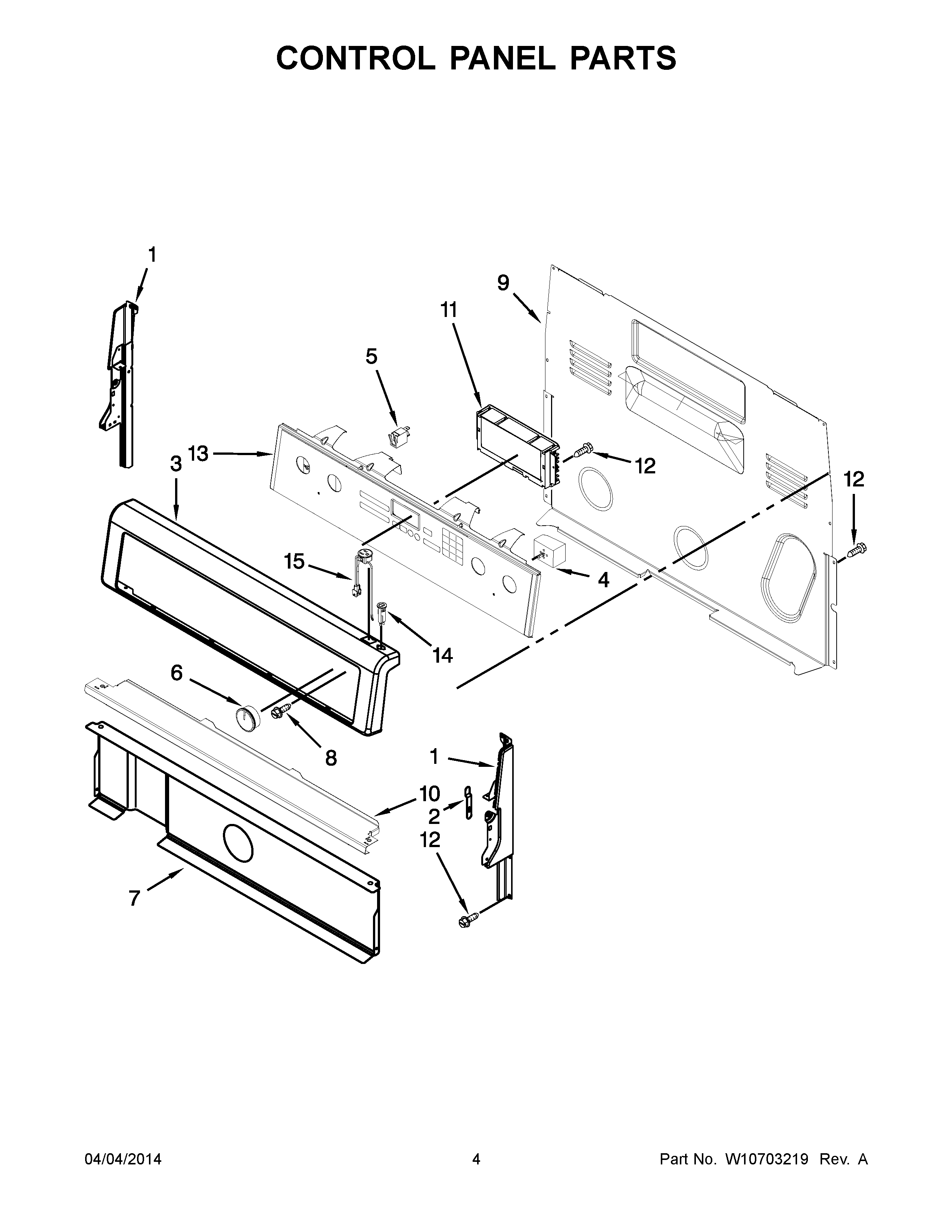

YWFE710H0BB1 03 – CONTROL PANEL PARTS

YWFE710H0BB1 03 – CONTROL PANEL PARTS

Written by

in

YWFE710H0BB1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3PANEL, BACKGUARD (BLACK)
3PANEL, BACKGUARD (WHITE)
3WPW10318553 Whirlpool Control Panel
4WPW10411934 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WPW10490036 Whirlpool Knob
6WPW10430806 Whirlpool Knob
6W10490035 Whirlpool Knob Assembly
7W10134247 Whirlpool Heat Shield
8WP3400882 Whirlpool Screw
9WP8272473 Whirlpool Rear Cover
10W10525121 Whirlpool Control Bracket
11WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12SCREW
13OVERLAY, ACTIVE (BLACK)
13OVERLAY, ACTIVE (WHITE)
13W10347930 Whirlpool Membrane Switch
13W10347929 Whirlpool Membrane Switch
14WP9757601 Whirlpool Breaker
14WP9757602 Whirlpool Breaker
15W10861164 Whirlpool Electrical Outlet
15W10849725 Whirlpool Electrical Outlet
