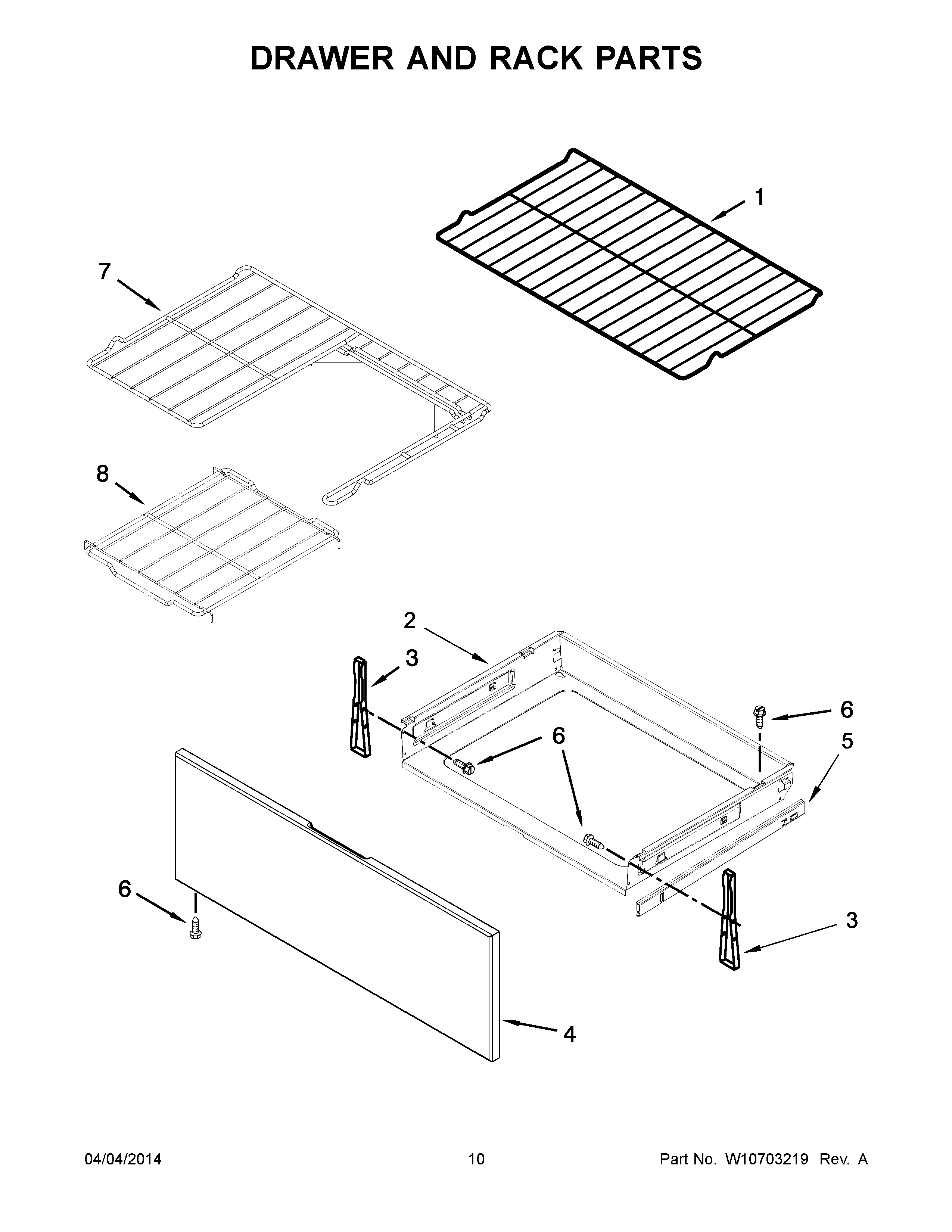

YWFE710H0BB1 06 – DRAWER AND RACK PARTS

YWFE710H0BB1 06 – DRAWER AND RACK PARTS

Written by

in

YWFE710H0BB1 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1WPW10531060 Whirlpool Oven Rack
2W10813962 Whirlpool Utility Drawer
3WPW10318027 Whirlpool Mounting Bracket
4W11280103 Whirlpool Drawer Panel
4W11297552 Whirlpool Drawer Panel
4W11297555 Whirlpool Drawer Panel
5WPW10441804 Whirlpool Drawer Slide
5WPW10441805 Whirlpool Slide Drawer
6WP3196175 Whirlpool Screw
7W10205526 Whirlpool Oven Rack
8W10186592 Whirlpool Oven Rack Assembly
