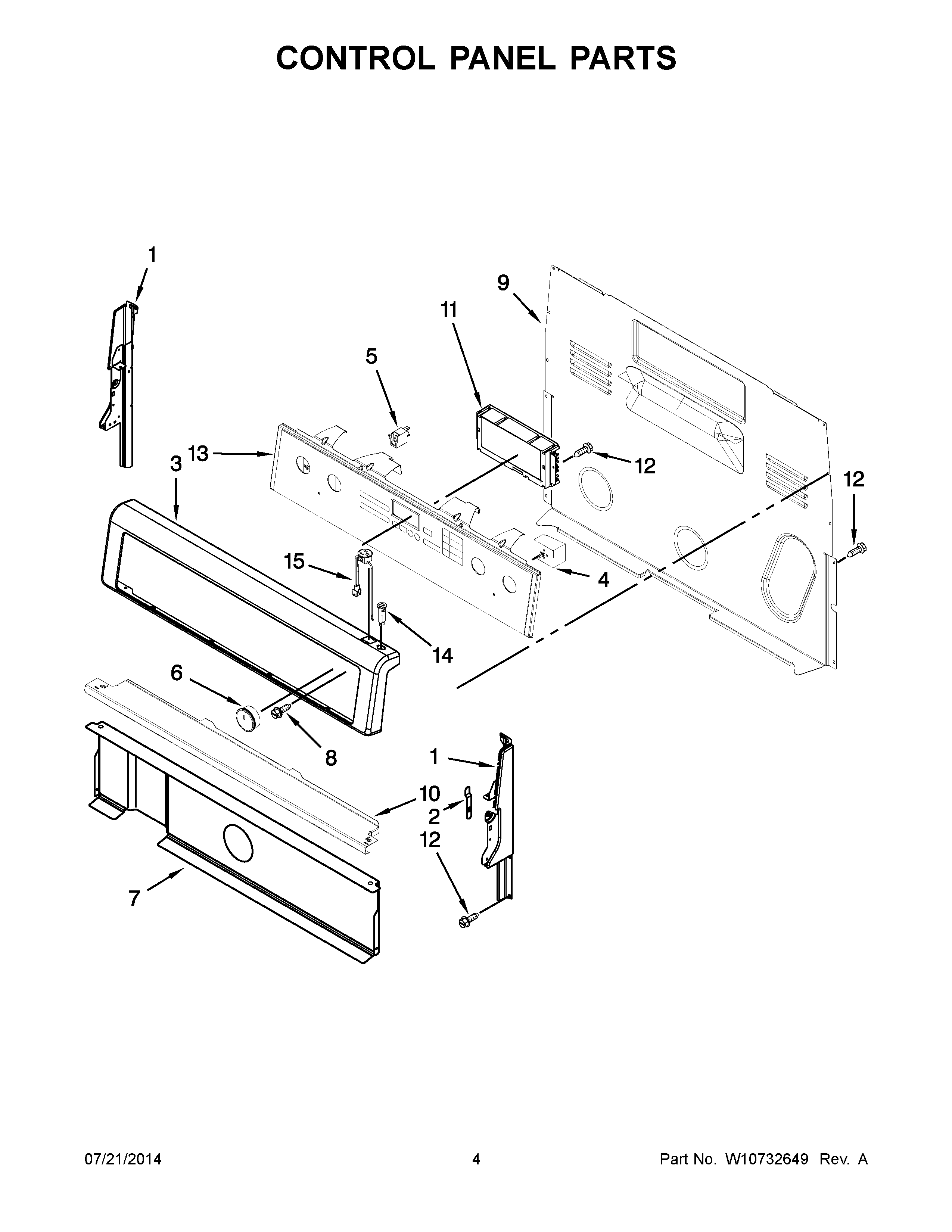

YWFE710H0DE0 03 – CONTROL PANEL PARTS

YWFE710H0DE0 03 – CONTROL PANEL PARTS

Written by

in

YWFE710H0DE0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
1AW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3APANEL, BACKGUARD (BLACK)
3PANEL, BACKGUARD (WHITE)
3BWPW10318553 Whirlpool Control Panel
4SWITCH-INF
4BW10917724 Whirlpool Infinite Switch
4AW10911303 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WPW10430806 Whirlpool Knob
7W10134247 Whirlpool Heat Shield
8WP3400882 Whirlpool Screw
9WP8272473 Whirlpool Rear Cover
10W10525121 Whirlpool Control Bracket
11WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12SCREW
13W10347930 Whirlpool Membrane Switch
14WP9757601 Whirlpool Breaker
14AWP9757602 Whirlpool Breaker
15AW10861164 Whirlpool Electrical Outlet
15W10849725 Whirlpool Electrical Outlet
