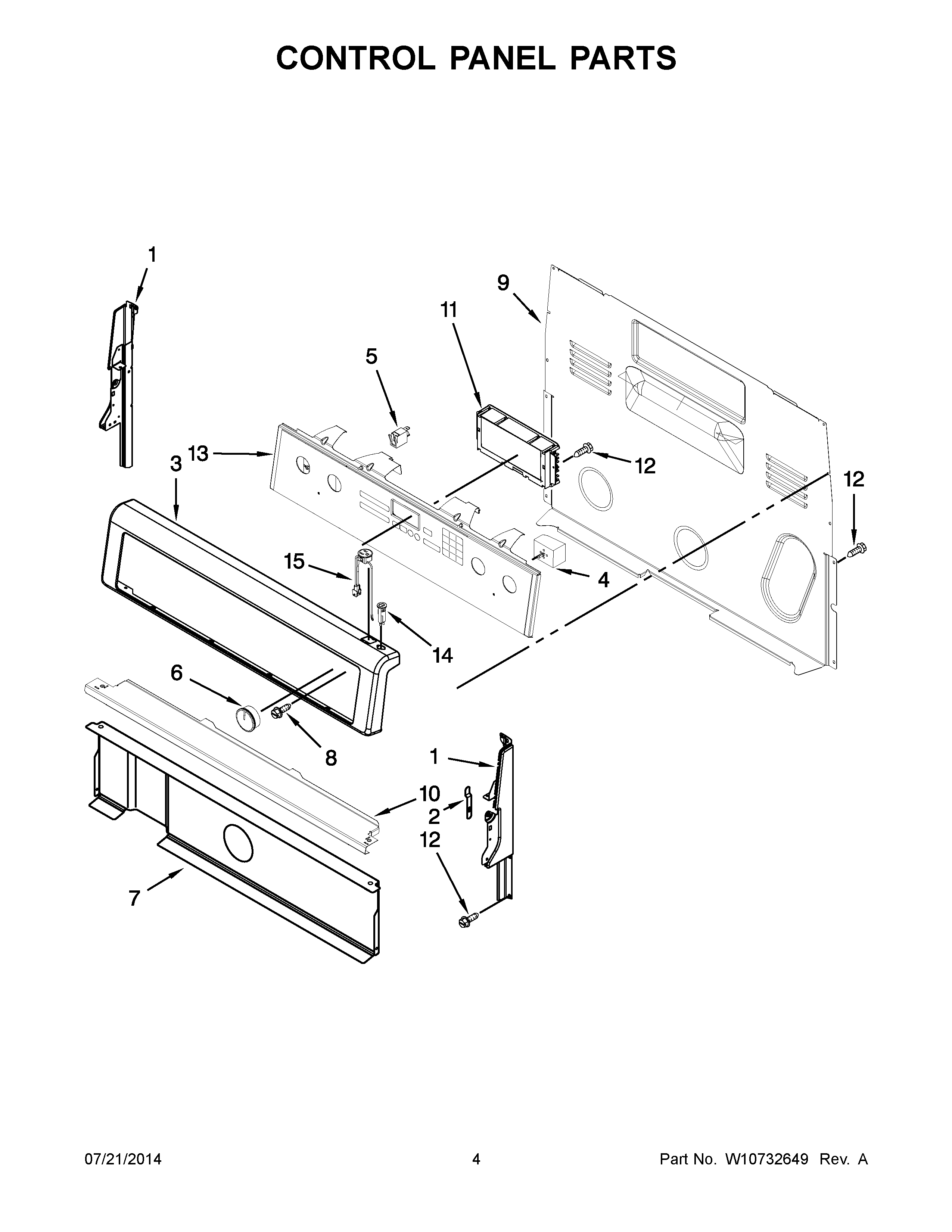

YWFE710H0DS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1B	W11219370 Whirlpool Endcap Panel
1A	W11219664 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
2	3196200 Whirlpool Clip
3A	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (WHITE)
3B	WPW10318553 Whirlpool Control Panel
4	SWITCH-INF
4B	W10917724 Whirlpool Infinite Switch
4A	W10911303 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WPW10430806 Whirlpool Knob
7	W10134247 Whirlpool Heat Shield
8	WP3400882 Whirlpool Screw
9	WP8272473 Whirlpool Rear Cover
10	W10525121 Whirlpool Control Bracket
11	WPW10340304-includeCORE Whirlpool WPW10340304 Refrigerator Electronic Control Board + Core
12	SCREW
13	W10347930 Whirlpool Membrane Switch
14	WP9757601 Whirlpool Breaker
14A	WP9757602 Whirlpool Breaker
15A	W10861164 Whirlpool Electrical Outlet
15	W10849725 Whirlpool Electrical Outlet
