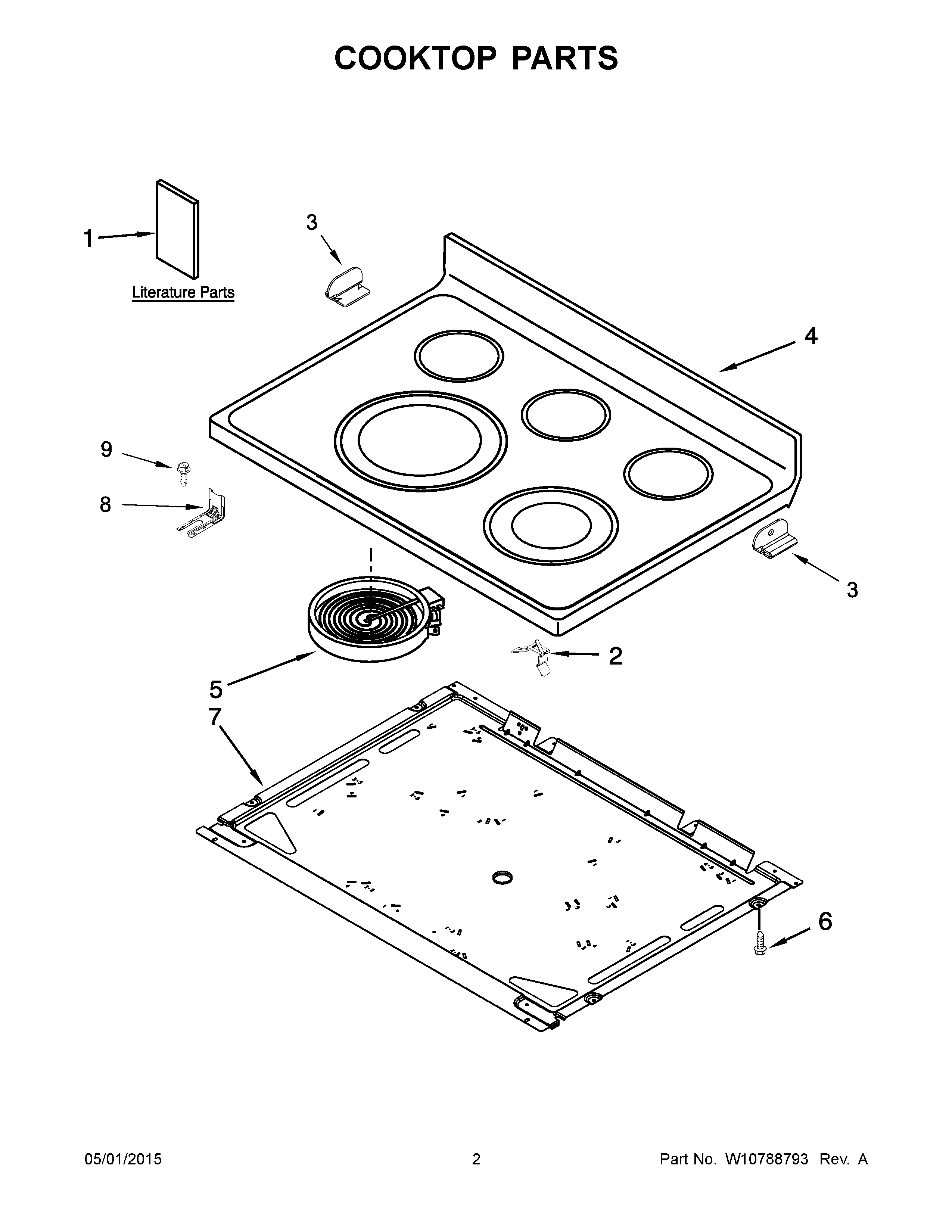

YWFE715H0EE0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10324944 Whirlpool Wire Harness
NIW10324946 Whirlpool Wire Harness
NIHARNESS, WIRE (COOKTOP LEFT)
NIHARNESS, WIRE (COOKTOP RIGHT)
NIW11134592 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NIHARNESS, MAIN
NISafer Cooking Tips (French)
1FSAFER COOKING TIPS (ENGLISH
1DQUICK START GUIDE
1EQUICK START GUIDE (FRENCH)
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W10472039 Whirlpool Cooktop
4AW10472038 Whirlpool Oven Cooktop
5AELMNT-SURF
5BWPW10342780 Whirlpool Surface Element
5DW11047668 Whirlpool Surface Element
5W10823727 Whirlpool Stove Right Front Surface Element
5CW11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
