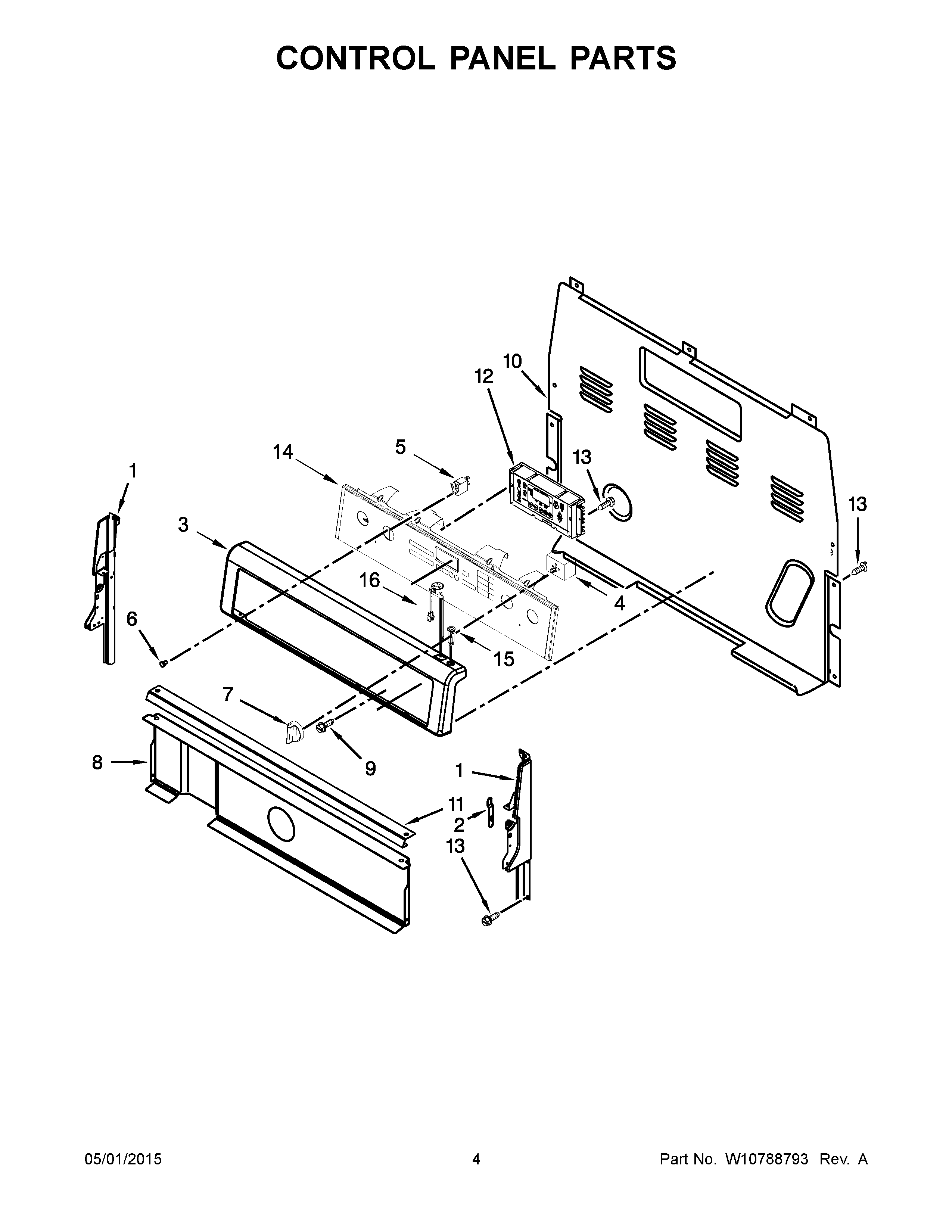

YWFE715H0EE0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1BW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3APANEL, BACKGUARD (BLACK)
3BWPW10318553 Whirlpool Control Panel
3PANEL, BACKGUARD (WHITE)
4BW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4AW10917724 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10854249 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10340308 Whirlpool Electronic Control Board + Core
13SCREW
14W10730777 Whirlpool Membrane Switch
14AACTIVE OVERLAY ASSEMBLY (WHITE)
15WP9757601 Whirlpool Breaker
15AWP9757602 Whirlpool Breaker
16AW10861164 Whirlpool Electrical Outlet
16W10849725 Whirlpool Electrical Outlet
