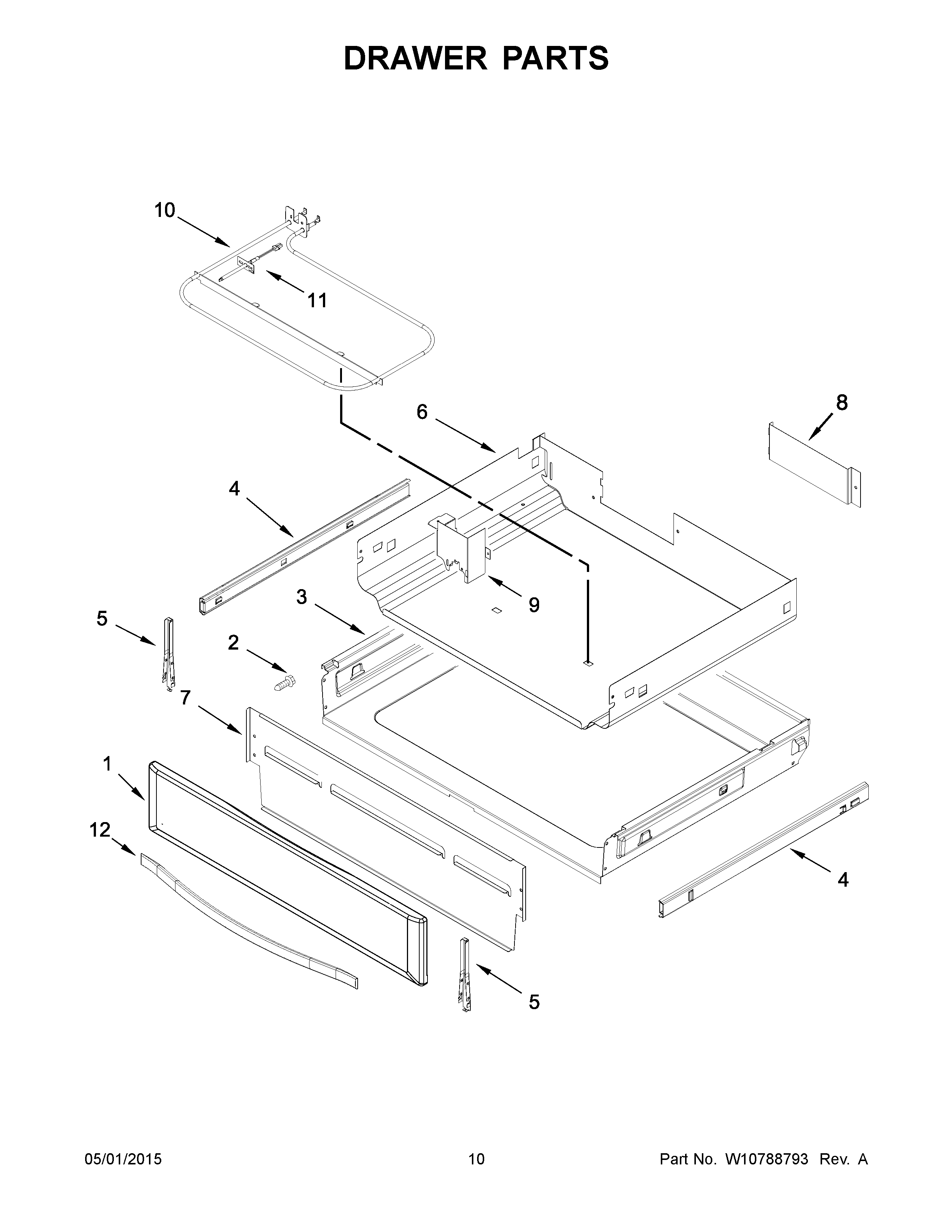

YWFE715H0EE0 06 – DRAWER PARTS

YWFE715H0EE0 06 – DRAWER PARTS

Written by

in

YWFE715H0EE0 06 – DRAWER PARTS

Products

PositionProduct
1W10330056 Whirlpool Range Drawer Panel
1BW11190206 Whirlpool Drawer Panel
2WP3196175 Whirlpool Screw
3W10813962 Whirlpool Utility Drawer
4WPW10441804 Whirlpool Drawer Slide
4AWPW10441805 Whirlpool Slide Drawer
5WPW10318027 Whirlpool Mounting Bracket
6W10634260 Whirlpool Utility Drawer
7PANEL, INNER DRAWER
8W10325438 Whirlpool Cover Panel
9W10634259 Whirlpool Wire Cover
10WPW10323181 Whirlpool Surface Element
11WPW10131827 Whirlpool Sensor
12WPW10618239 Whirlpool Door Handle
