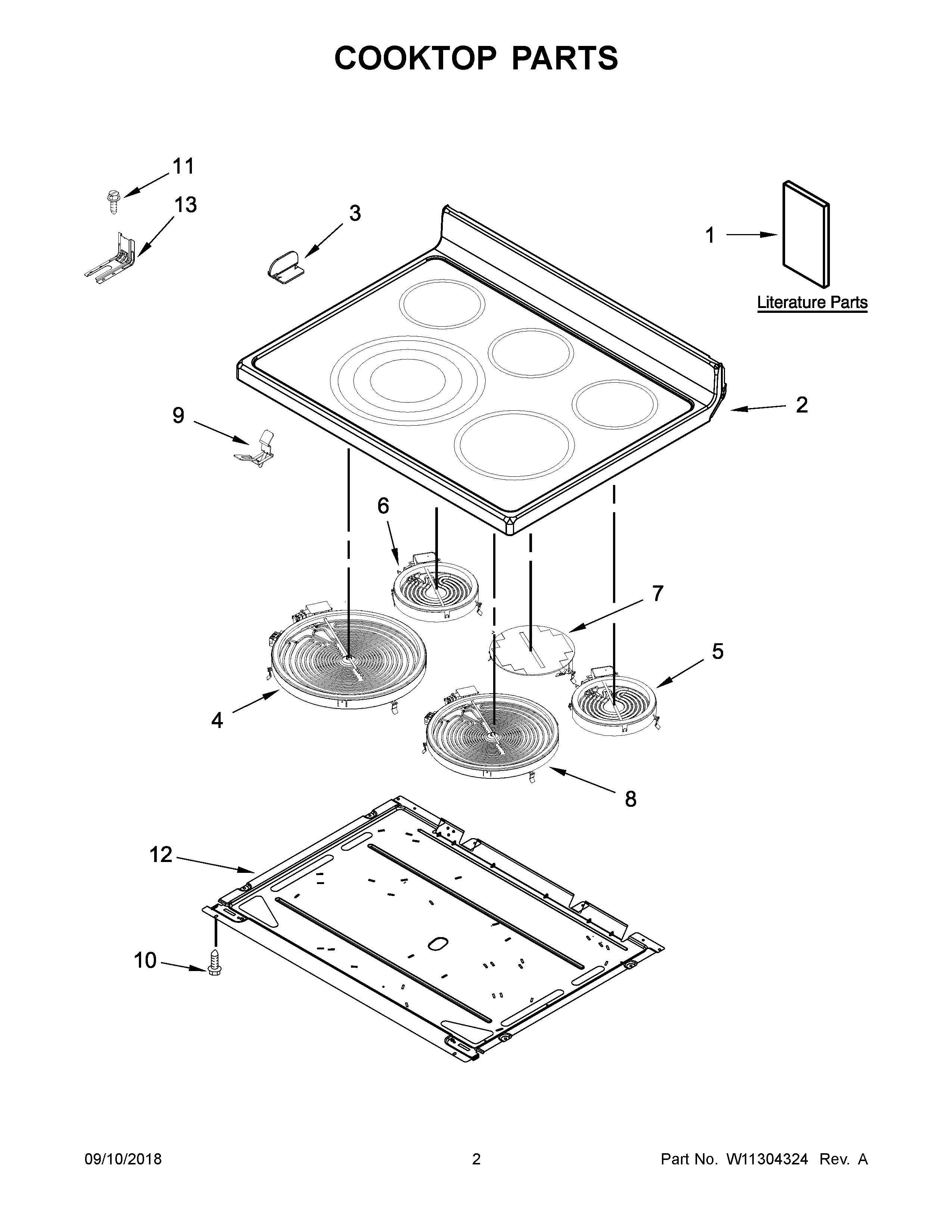

YWFE745H0FH2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
1	GUIDE, USE & CARE (ENGLISH)
1A	GUIDE, USE & CARE (FRENCH)
1F	INSTRUCTIONS, INSTALLATION
1D	SHEET, TECH (ENGLISH)
1E	SHEET, TECH (FRENCH)
1C	QUICK START GUIDE (FRENCH)
1B	QUICK START GUIDE
2	W10872564 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11563195 Whirlpool Surface Element
5	ELMNT-SURF
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW, ANTI-TIP KIT
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
