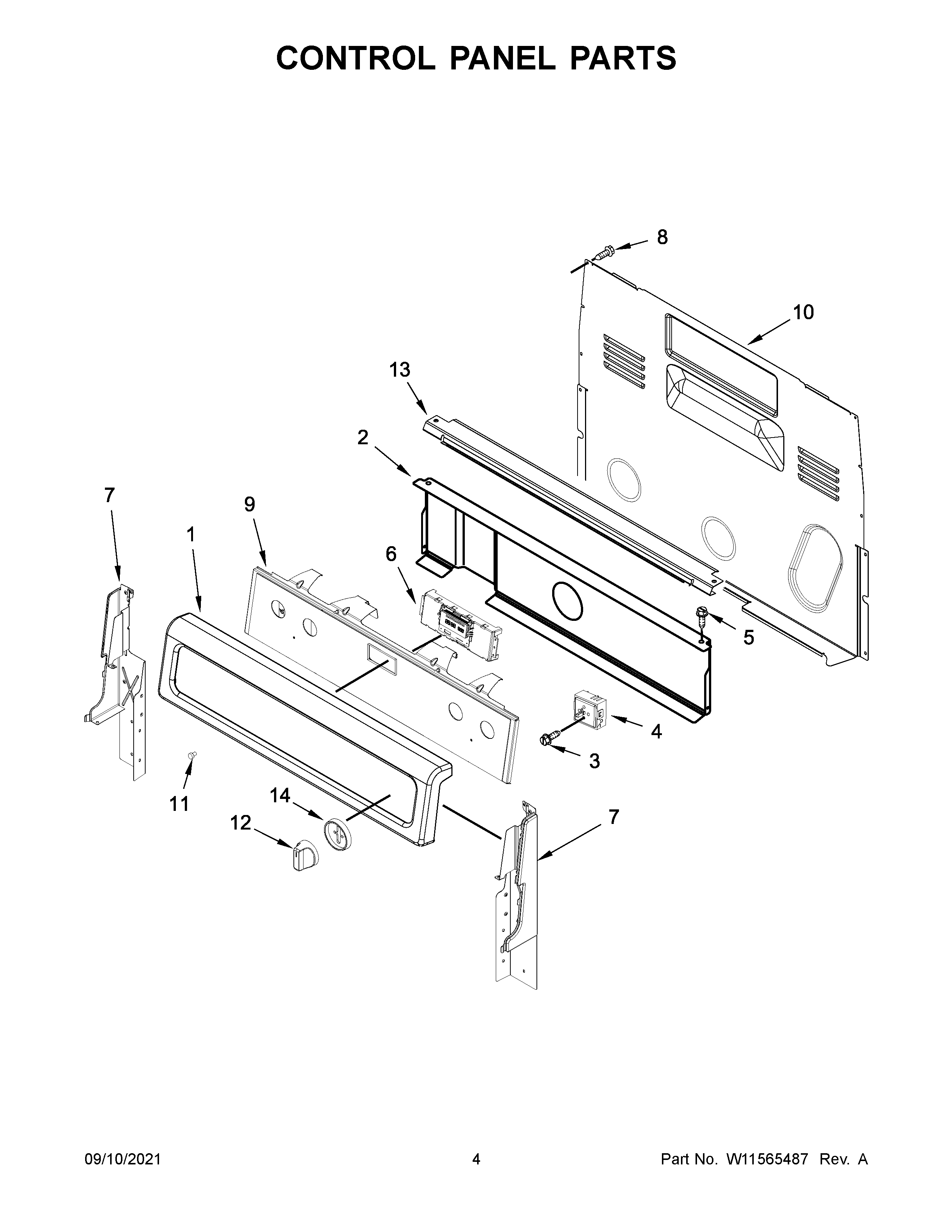

YWFE745H0FH3 03 – CONTROL PANEL PARTS

YWFE745H0FH3 03 – CONTROL PANEL PARTS

Written by

in

YWFE745H0FH3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10318552 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4CW10911303 Whirlpool Infinite Switch
4BSWITCH-INF
4AW10917724 Whirlpool Infinite Switch
4W11129442 Whirlpool Surface Infinite Element Switch
5SCREW
6W11308431 Whirlpool Electronic Control Board
7AW11219370 Whirlpool Endcap Panel
7W11219365 Whirlpool Panel Endcap
8WP3196175 Whirlpool Screw
9W10826709 Whirlpool Membrane Switch
10WP8272473 Whirlpool Rear Cover
11WP3196068 Whirlpool Light Lens
12W11517331 Whirlpool Knob
13W10525121 Whirlpool Control Bracket
14W10850042 Whirlpool Knob Bezel
