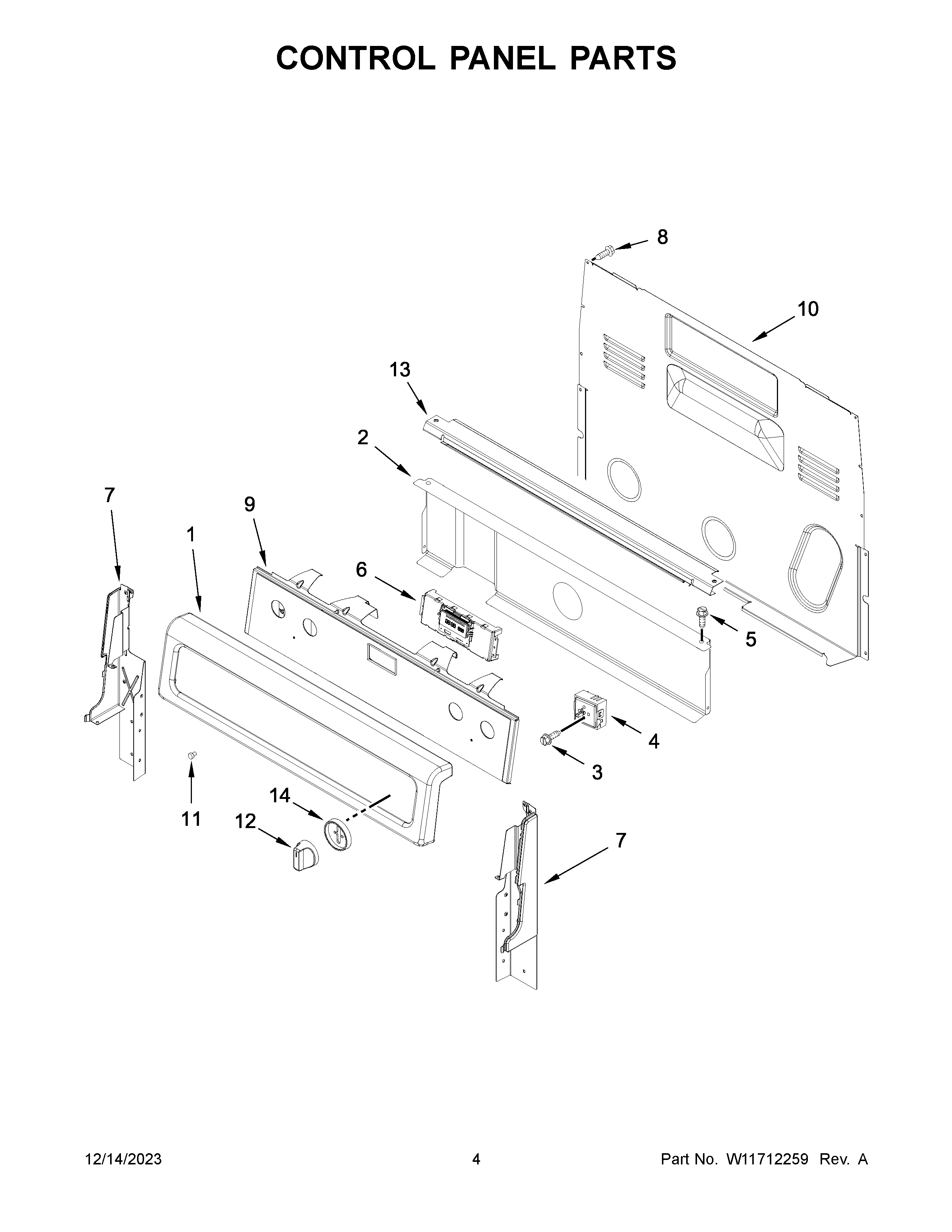

YWFE745H0FH6 03 – CONTROL PANEL PARTS

Products

Position	Product
1	WPW10318552 Whirlpool Control Panel
2	W10134247 Whirlpool Heat Shield
3	WP3400882 Whirlpool Screw
4C	W10911303 Whirlpool Infinite Switch
4B	SWITCH-INF
4A	W10917724 Whirlpool Infinite Switch
4	W11129442 Whirlpool Surface Infinite Element Switch
5	SCREW
6	W11594264-includeCORE Whirlpool W11594264 Refrigerator Electronic Control Board + Core
7A	W11219370 Whirlpool Endcap Panel
7	W11219365 Whirlpool Panel Endcap
8	WP3196175 Whirlpool Screw
9	ASSEMBLY, ACTIVE OVERLAY (WHITE)
10	WP8272473 Whirlpool Rear Cover
11	WP3196068 Whirlpool Light Lens
12	W11517331 Whirlpool Knob
13	W10525121 Whirlpool Control Bracket
14	W10850042 Whirlpool Knob Bezel
