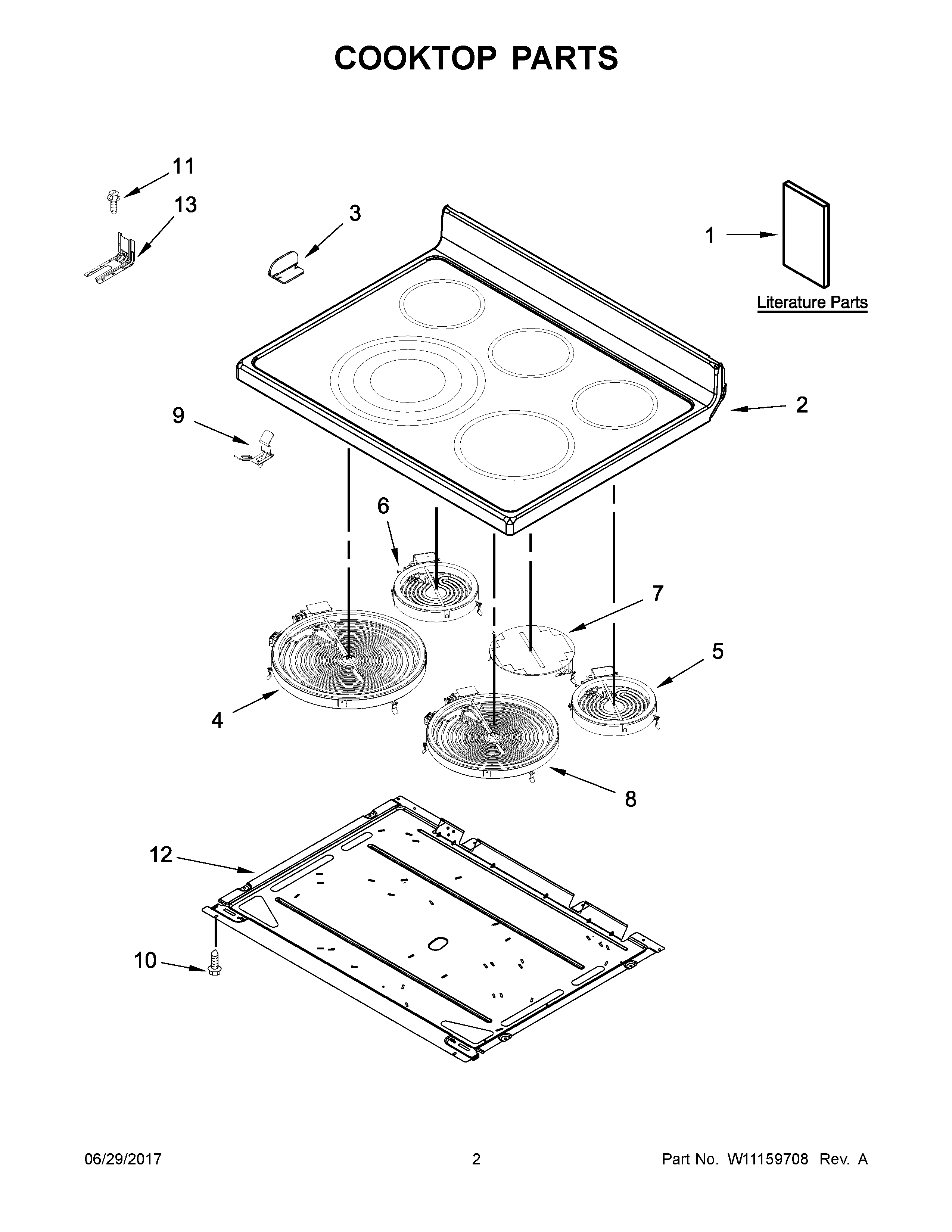

YWFE745H0FS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11212183 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11226497 Whirlpool Power Cord
NI	W11134592 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP (LEFT)
1B	SHEET, TECH (FRENCH)
1E	SAFER COOKING TIPS (ENGLISH
1C	INSTRUCTIONS, INSTALLATION
1F	Safer Cooking Tips (French)
1	GUIDE, USE & CARE (ENGLISH)
1H	QUICK START GUIDE (FRENCH)
1D	QUICK START GUIDE
1A	SHEET, TECH (ENGLISH)
1G	GUIDE, USE & CARE (FRENCH)
2	W10872562 Whirlpool Cooktop Assembly
2A	W10872564 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11563195 Whirlpool Surface Element
5	ELMNT-SURF
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW, ANTI-TIP KIT
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
