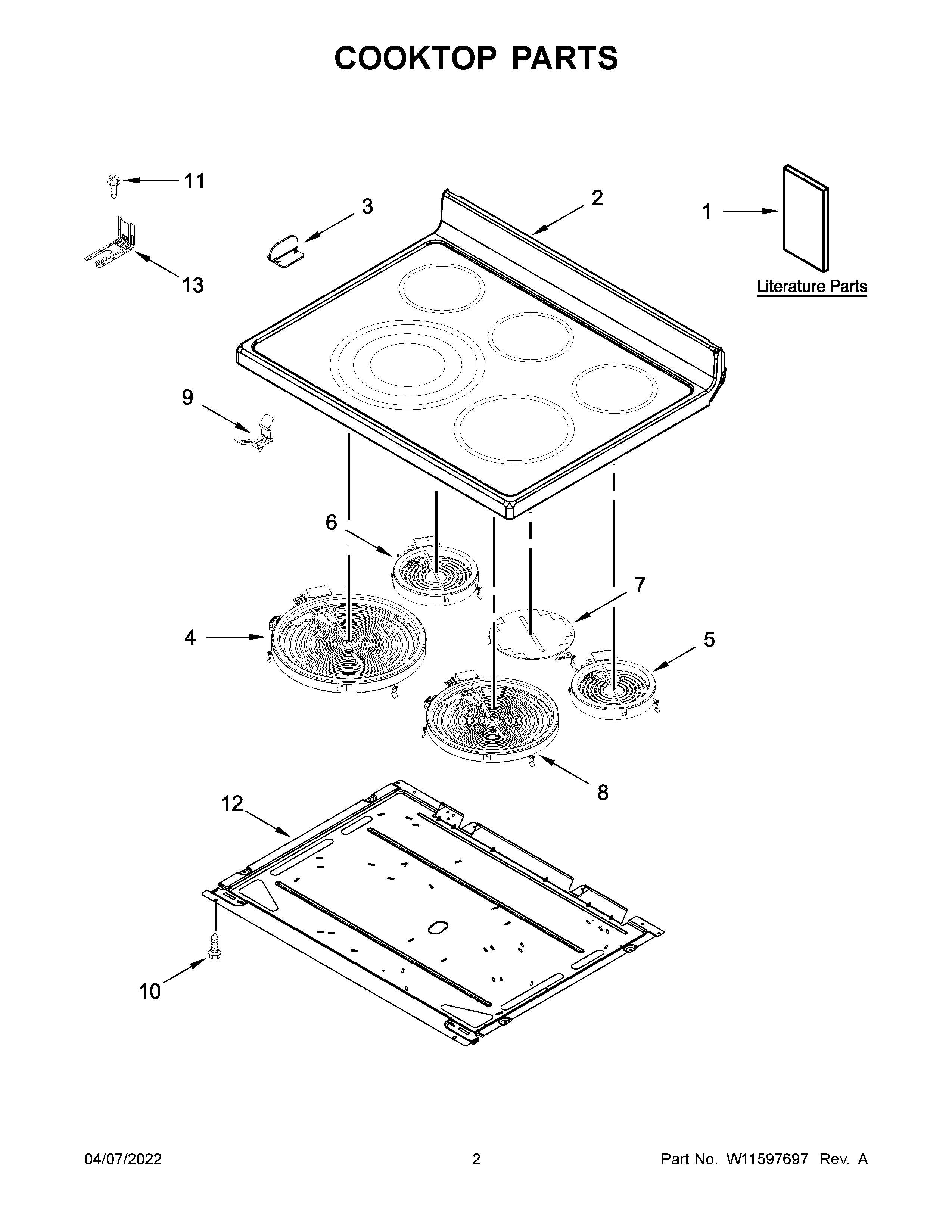

YWFE745H0FS5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
1B	QUICK START GUIDE
1A	TECH SHEET
1	OWNERS MANUAL
2	W10872562 Whirlpool Cooktop Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11563195 Whirlpool Surface Element
5	ELMNT-SURF
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW, ANTI-TIP KIT
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
