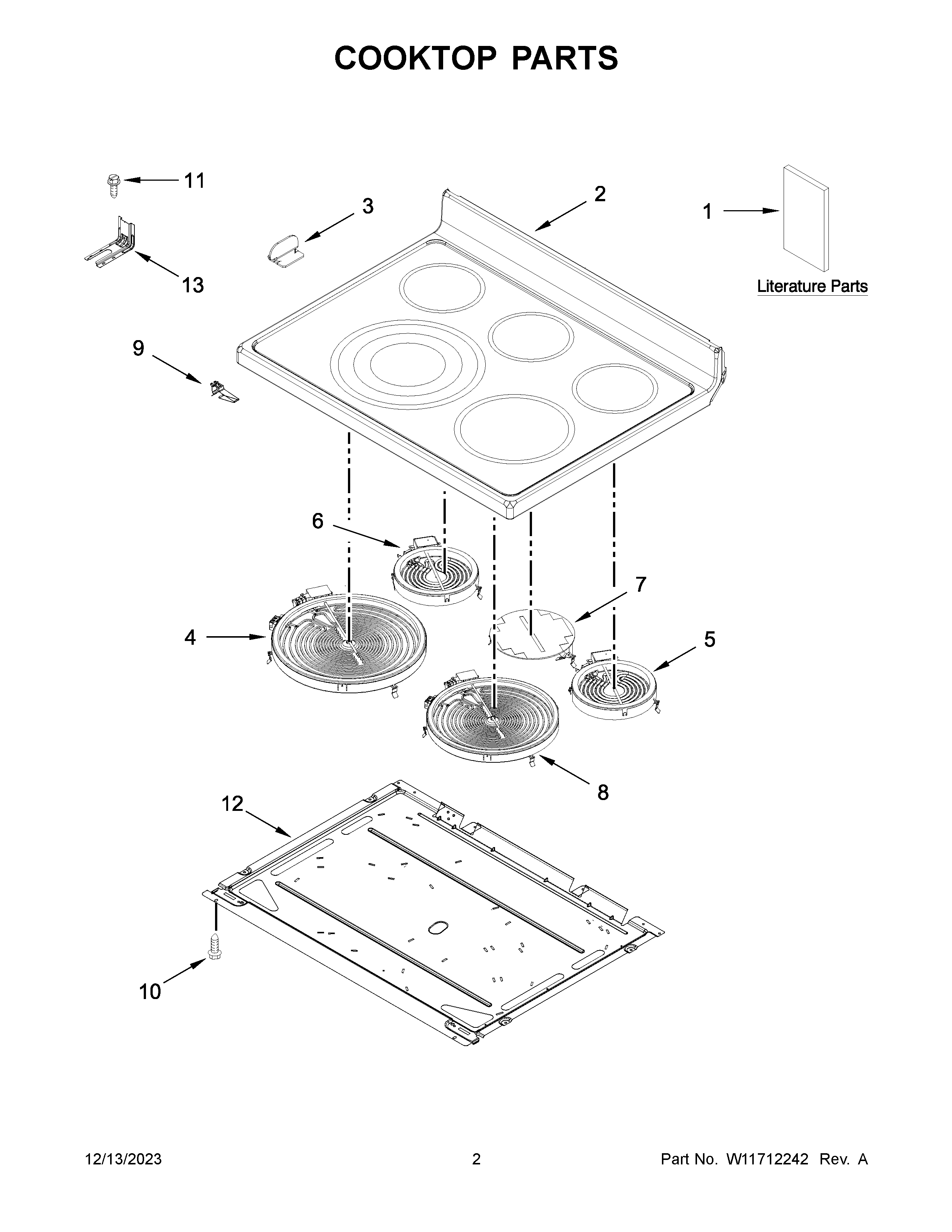

YWFE745H0FS6 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11134592 Whirlpool Wire Harness
1B	QUICK START GUIDE
1A	TECH SHEET
1	OWNERS MANUAL
2	W10872562 Whirlpool Cooktop Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11563195 Whirlpool Surface Element
5	ELMNT-SURF
6	WPW10342780 Whirlpool Surface Element
7	W11041453 Whirlpool Surface Element
8	W11517959 Whirlpool Electric Range Radiant Surface Element
9	W11663556 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW, ANTI-TIP KIT
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
