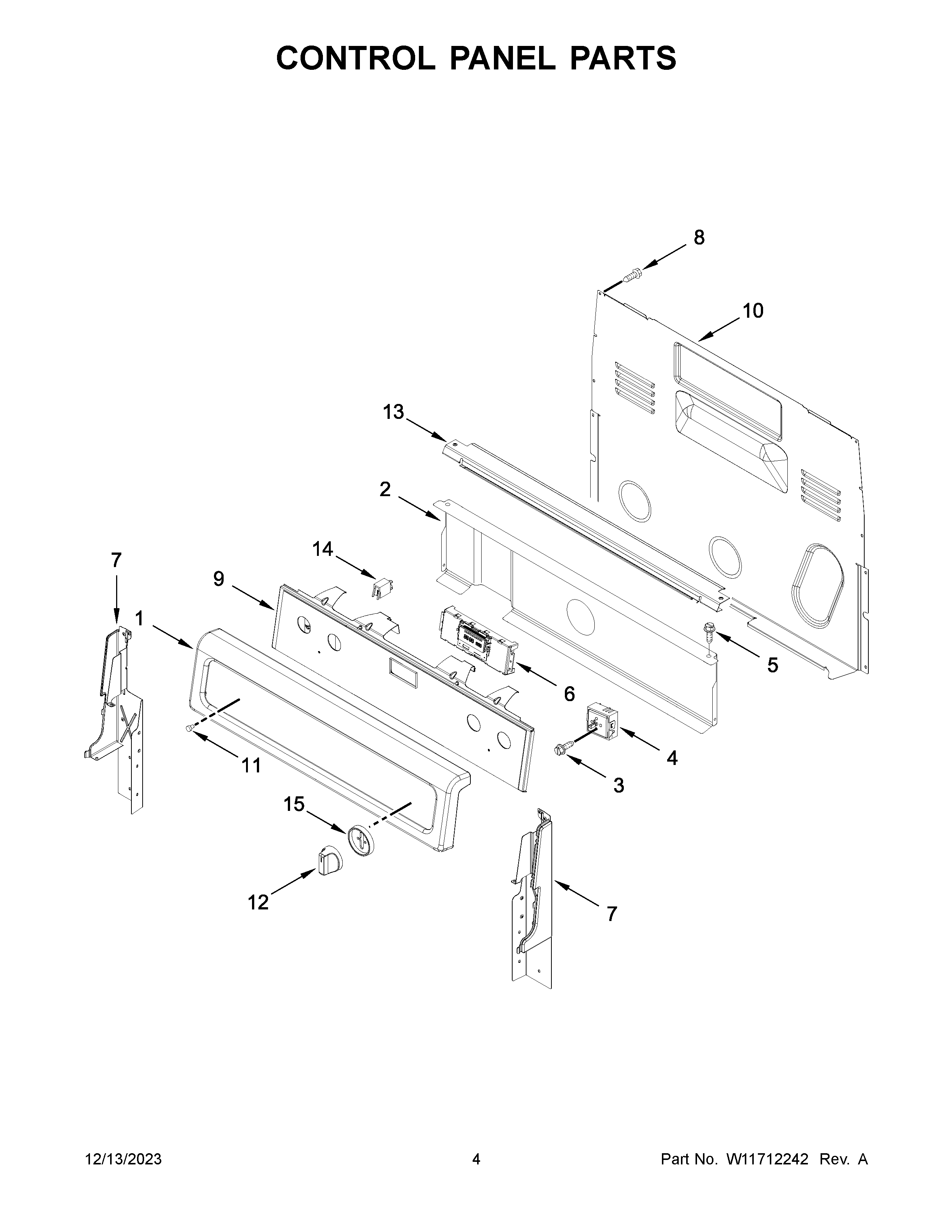

YWFE745H0FS6 03 – CONTROL PANEL PARTS

Products

Position	Product
1	WPW10318550 Whirlpool Control Panel
2	W10134247 Whirlpool Heat Shield
3	WP3400882 Whirlpool Screw
4B	SWITCH-INF
4A	W10917724 Whirlpool Infinite Switch
4	W11129442 Whirlpool Surface Infinite Element Switch
4C	W10911303 Whirlpool Infinite Switch
5	SCREW
6	W11594264-includeCORE Whirlpool W11594264 Refrigerator Electronic Control Board + Core
7A	W11219665 Whirlpool Panel Endcap
7	W11219664 Whirlpool Endcap Panel
8	WP3196175 Whirlpool Screw
9	ASSEMBLY, ACTIVE OVERLAY (STAINLESS)
10	WP8272473 Whirlpool Rear Cover
11	WP3196068 Whirlpool Light Lens
12	W11517331 Whirlpool Knob
13	W10525121 Whirlpool Control Bracket
14	WP8523265 Whirlpool Indicator Light
15	W10850042 Whirlpool Knob Bezel
