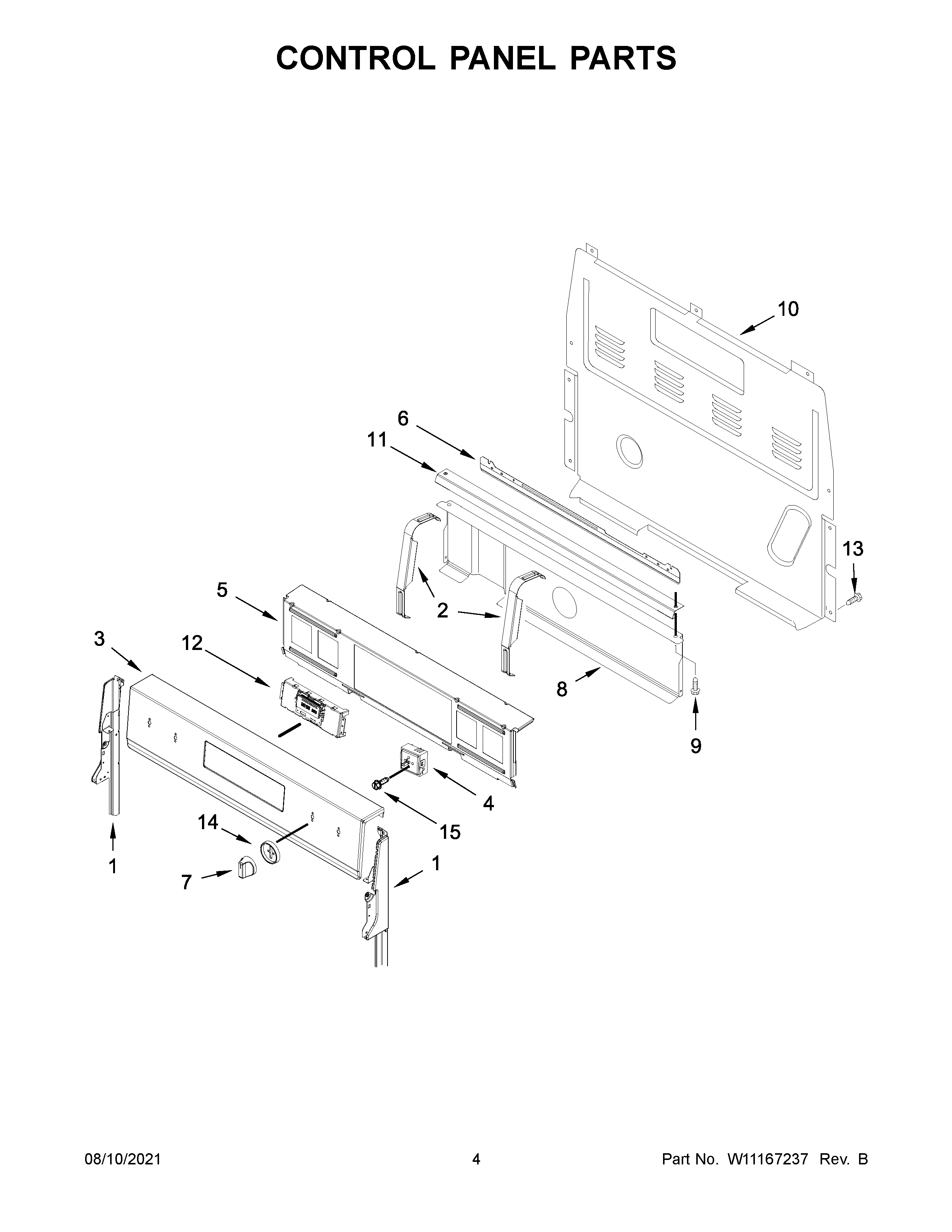

YWFE775H0HV0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2BRACKET, CONTROL
3W11106246 Whirlpool Control Panel
3AW11105825 Whirlpool Control Panel
4BW10917724 Whirlpool Infinite Switch
4SWITCH-INF
4AW10911303 Whirlpool Infinite Switch
5W10901802 Whirlpool Mounting Bracket
6W11443964 Whirlpool Support Bracket
7AW11674369 Whirlpool Knob
7KNOB
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11536793-includeCORE Whirlpool W11536793 Washer Electronic Control Board + Core
13SCREW
14W10918419 Whirlpool Switch Bezel
14ABEZEL (BLACK STAINLESS)
157101P676-60 Whirlpool Screw
