YWFE775H0HV5 02 – COOKTOP PARTS

YWFE775H0HV5 02 – COOKTOP PARTS

Written by

in

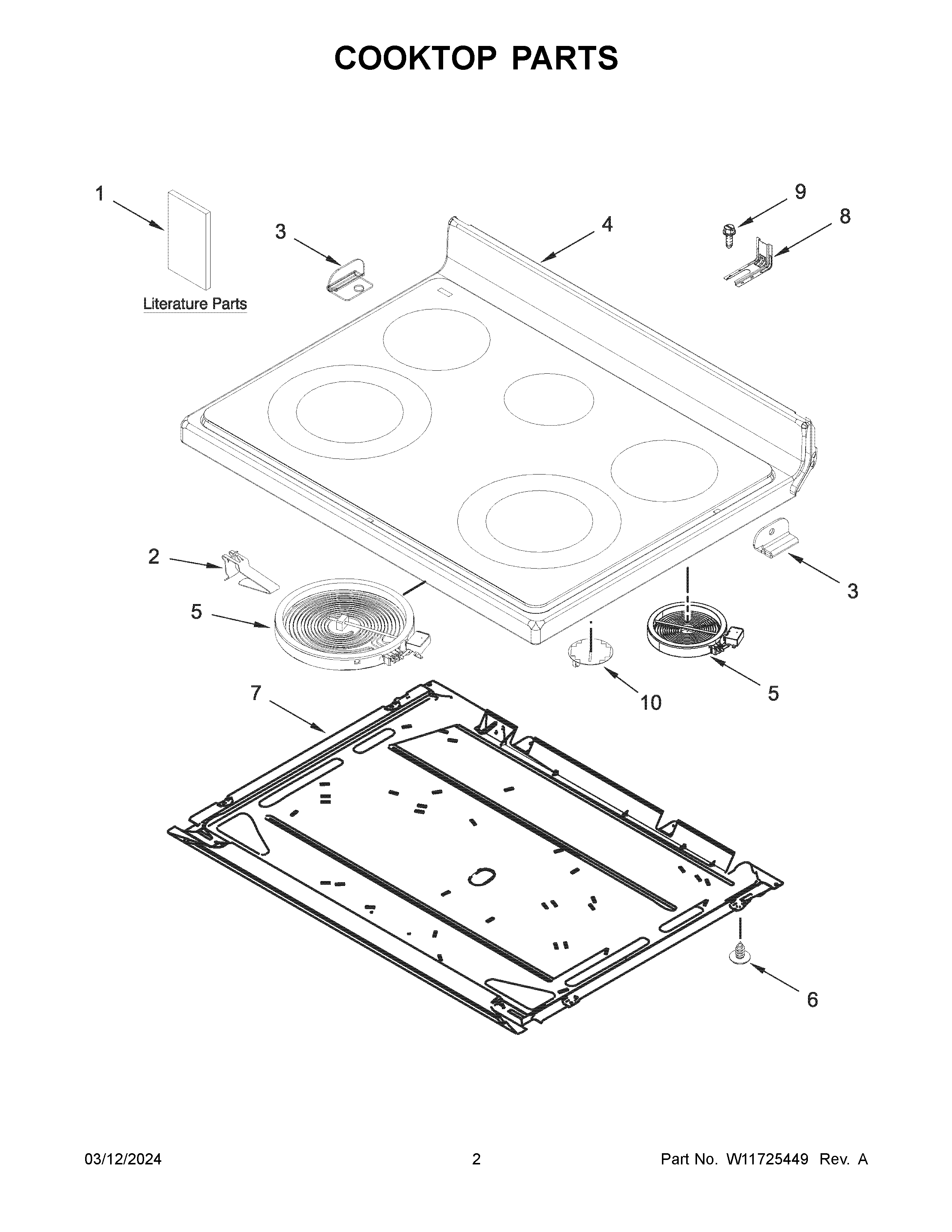

YWFE775H0HV5 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIW11134592 Whirlpool Wire Harness
NIHARNESS, COOKTOP (RIGHT)
NIHARNESS, COOKTOP (LEFT)
NIFOLLOWING PARTS NOT ILLUSTRATED
1OWNER'S MANUAL
1ATECH SHEET
1BWIRING DIAGRAM
1CGUIDE, QUICK START (ENGLISH AND FRENCH)
2W11663556 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11129393 Whirlpool Cooktop Assembly
5WPW10342780 Whirlpool Surface Element
5CW10823727 Whirlpool Stove Right Front Surface Element
5BW11517959 Whirlpool Electric Range Radiant Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
10W11041453 Whirlpool Surface Element
