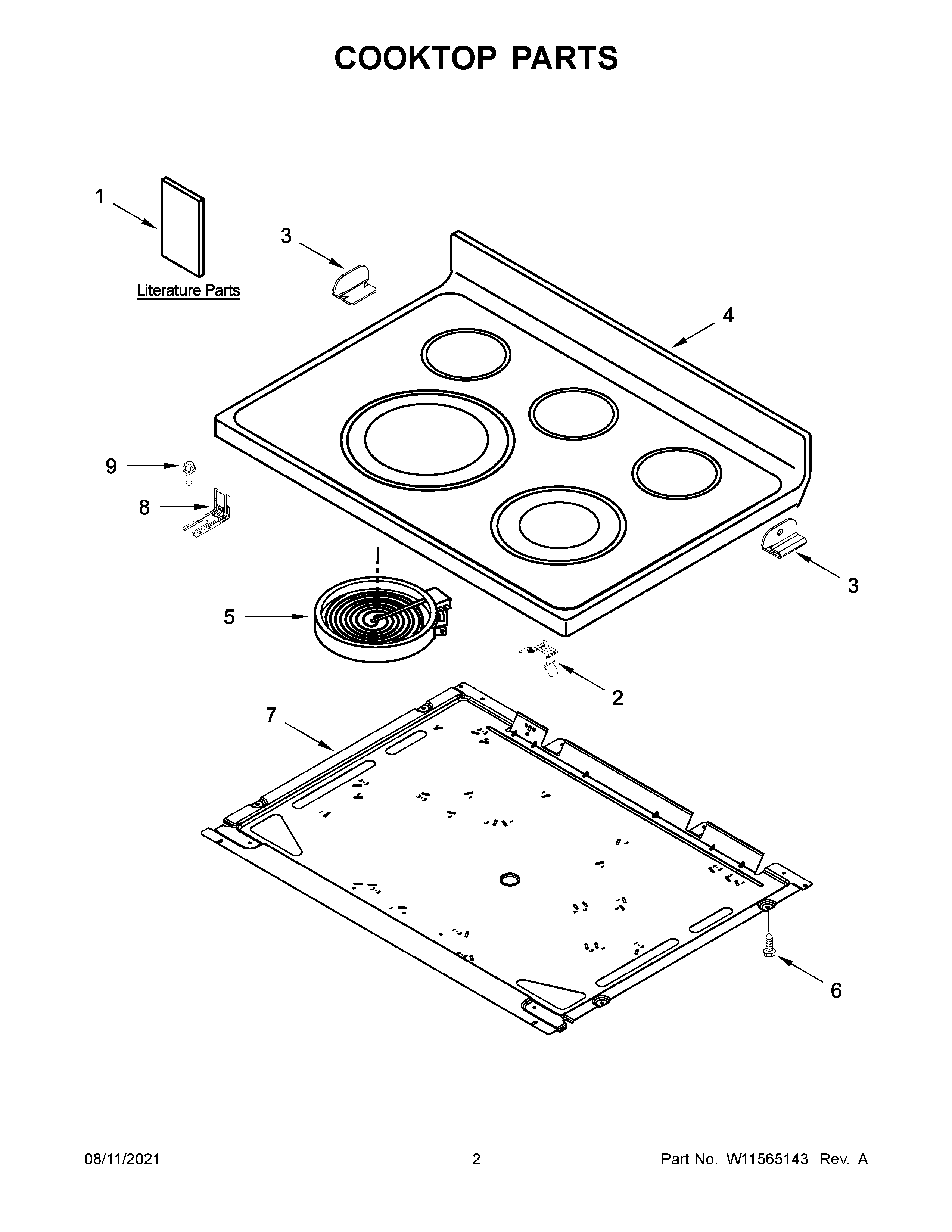

YWFE975H0HV2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	HARNESS, WIFI MODULE
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11134592 Whirlpool Wire Harness
1A	USE AND CARE GUIDE
1	GUIDE, QUICK START (ENGLISH AND FRENCH)
1B	TECH SHEET (ENGLISH)
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11165675 Whirlpool Cooktop Assembly
5	WPW10342780 Whirlpool Surface Element
5B	W11563195 Whirlpool Surface Element
5C	W11517959 Whirlpool Electric Range Radiant Surface Element
5A	ELMNT-SURF
5D	W11041453 Whirlpool Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
