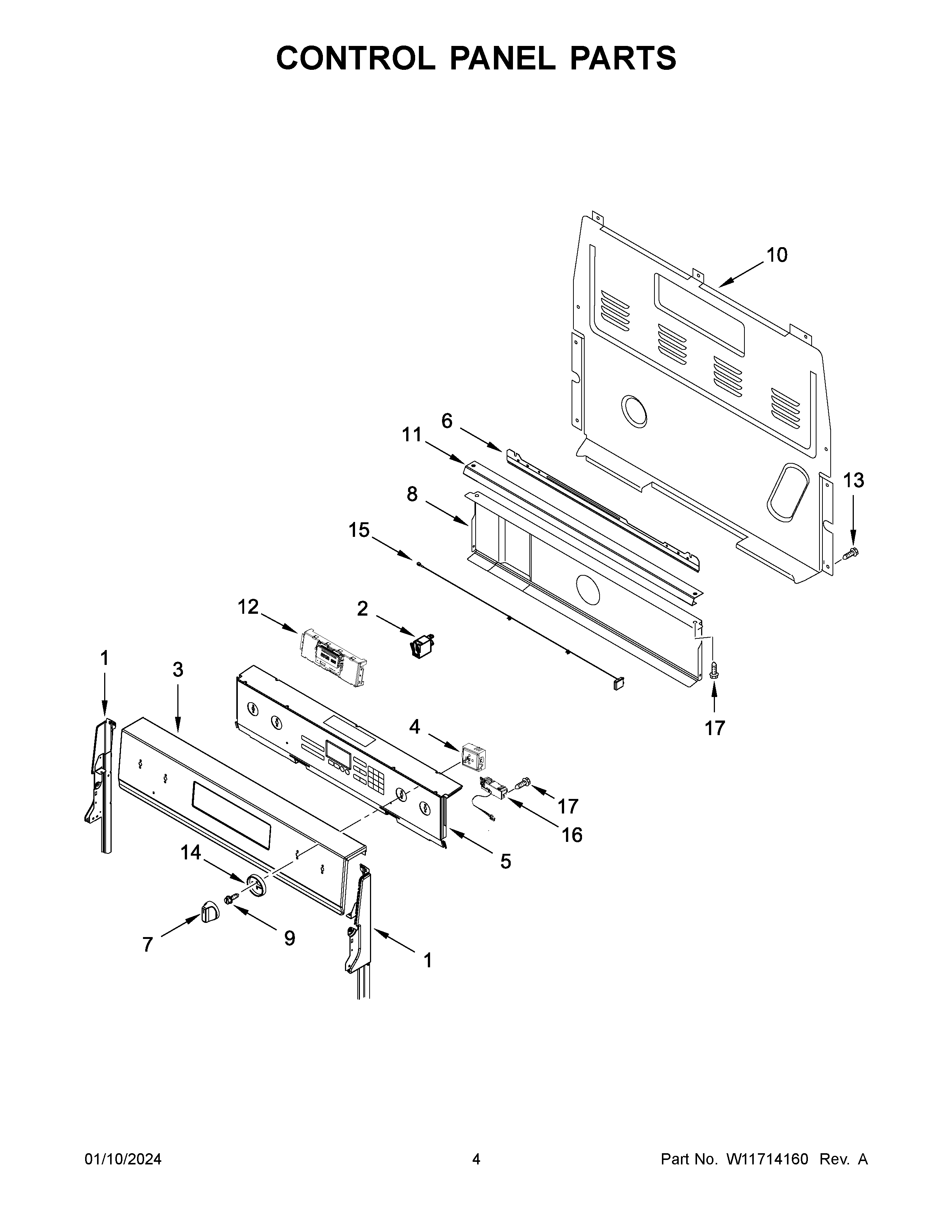

YWFE975H0HV5 03 – CONTROL PANEL PARTS

YWFE975H0HV5 03 – CONTROL PANEL PARTS

Written by

in

YWFE975H0HV5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2WP3196068 Whirlpool Light Lens
3AW11165616 Whirlpool Control Panel
3W11165617 Whirlpool Control Panel
4BW10911303 Whirlpool Infinite Switch
4ASWITCH-INF
4CW10917724 Whirlpool Infinite Switch
4W11129442 Whirlpool Surface Infinite Element Switch
5SWTCH-MEMB
6W11443964 Whirlpool Support Bracket
7KNOB
7AW11674369 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9W10674068 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11165552-includeCORE Whirlpool W11165552 Refrigerator Electronic Control Board + Core
13SCREW
14W10918419 Whirlpool Switch Bezel
14ABEZEL (BLACK STAINLESS)
15ANTENNA
16W11165979 Whirlpool Electronic Control Board
17WP3196175 Whirlpool Screw
