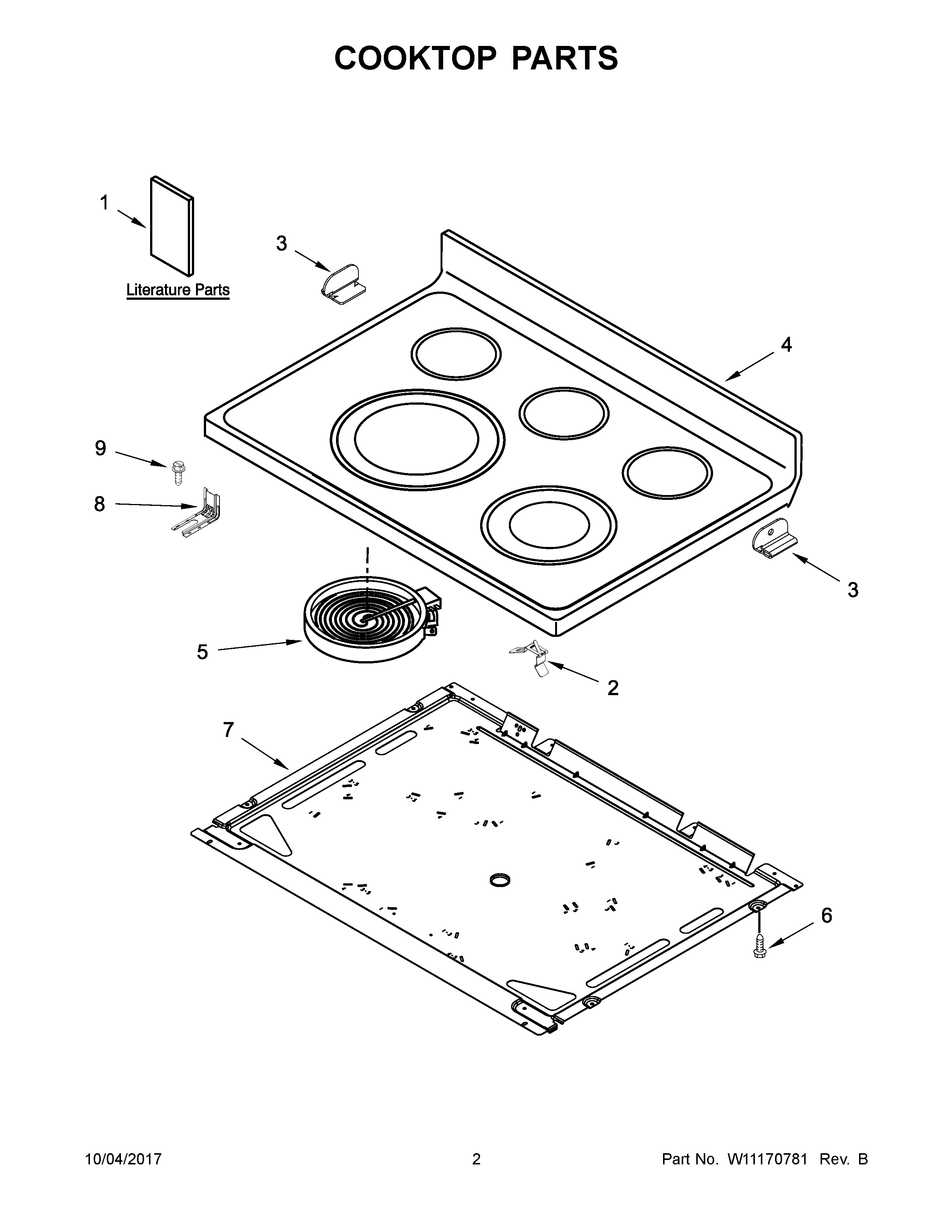

YWFE975H0HZ0 02 – COOKTOP PARTS

YWFE975H0HZ0 02 – COOKTOP PARTS

Written by

in

YWFE975H0HZ0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP (LEFT)
NIW11025427 Whirlpool Wire Harness
NIHARNESS, WIRE (COOKTOP RIGHT)
NIW11134592 Whirlpool Wire Harness
NIHARNESS, MAIN
1AUSE AND CARE GUIDE
1CGUIDE, QUICK START (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
1FGUIDE, INTERNET CONNECTIVITY
1ESafer Cooking Tips (French)
1DSAFER COOKING TIPS (ENGLISH
1BTECH SHEET (ENGLISH)
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11165675 Whirlpool Cooktop Assembly
5AELMNT-SURF
5DW11041453 Whirlpool Surface Element
5WPW10342780 Whirlpool Surface Element
5CW11517959 Whirlpool Electric Range Radiant Surface Element
5BW11563195 Whirlpool Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
