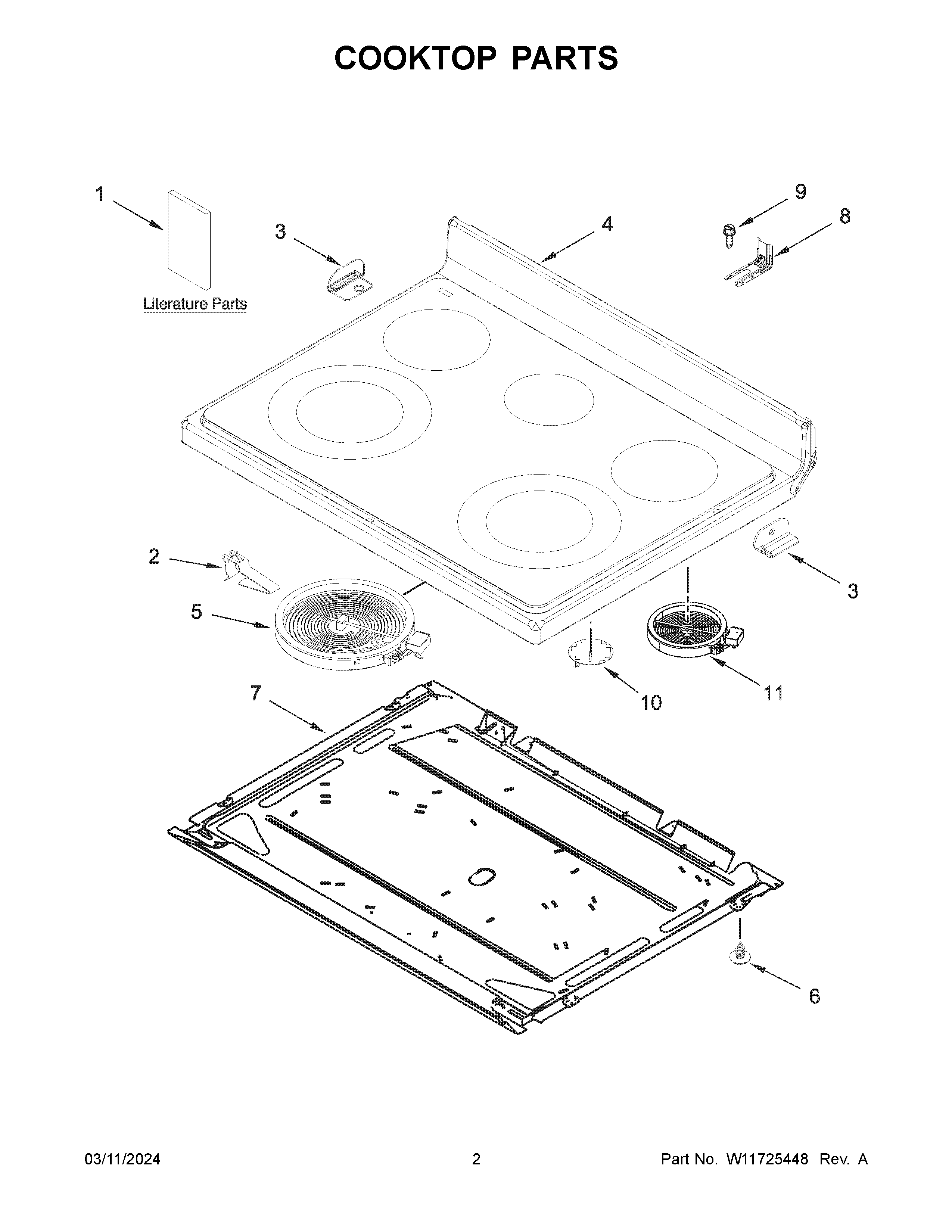

YWFES3330RW0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W11134845 Whirlpool Wire Harness
NI	HARNESS, WARM ZONE
NI	W11675846 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	QUICK START GUIDE
1A	OWNERS MANUAL
1B	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	COOKTOP (WHITE)
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	ELEMENT, WARM ZONE (CENTER)
11	ELMNT-SURF
