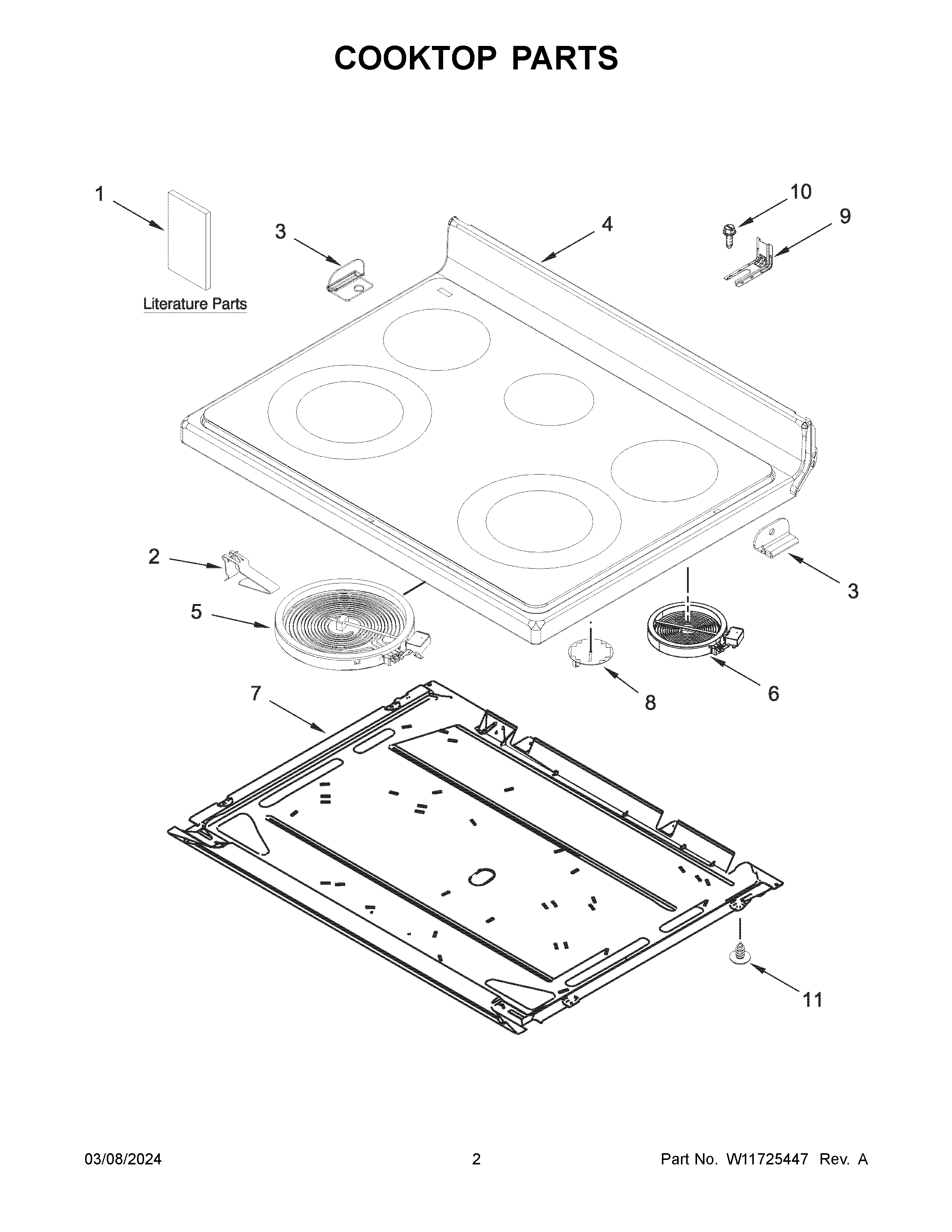

YWFES3330RZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11675846 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, MAIN
NI	W11134845 Whirlpool Wire Harness
NI	HARNESS, WARM ZONE
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11663556 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	COOKTOP
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	PAN
8	ELEMENT, WARM ZONE (CENTER)
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
