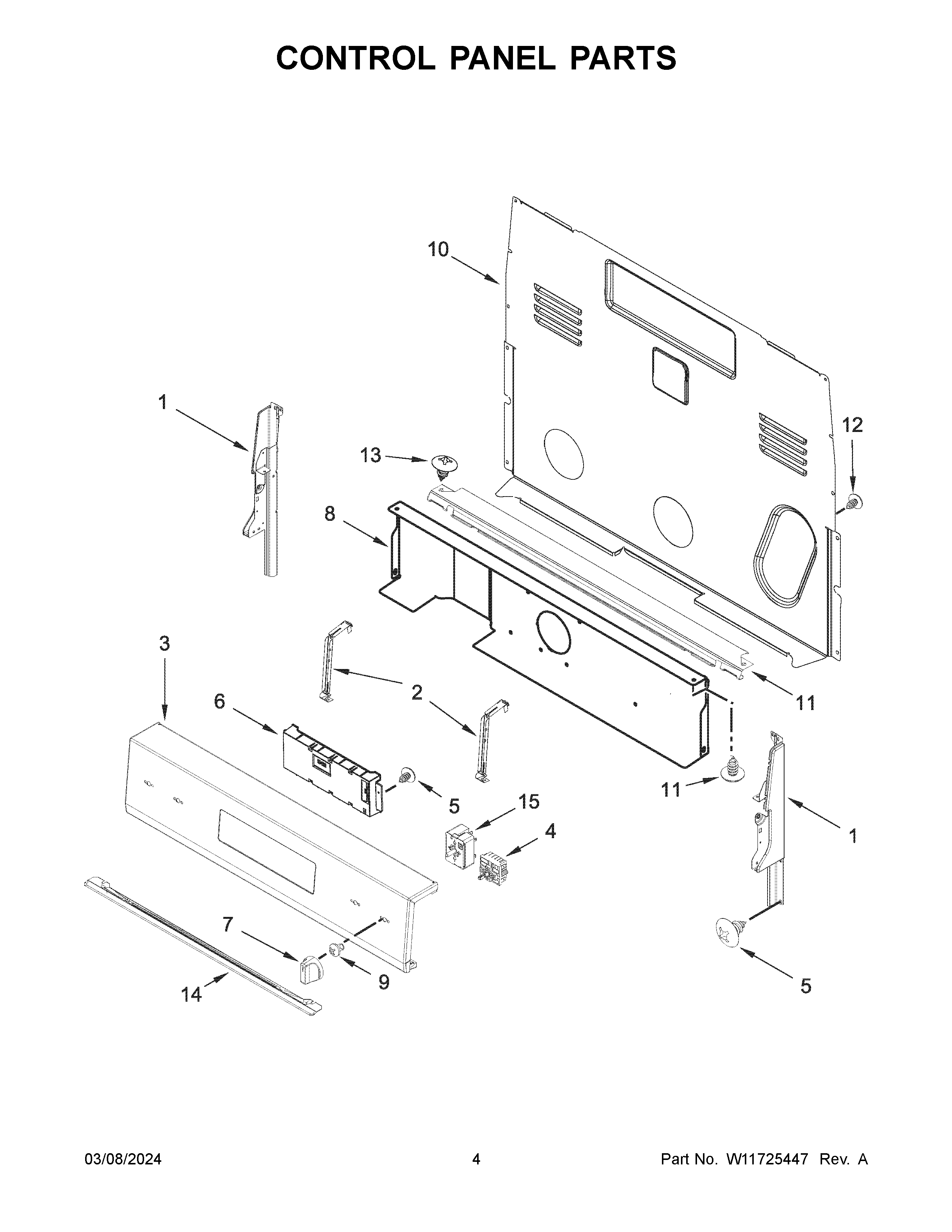

YWFES3330RZ0 03 – CONTROL PANEL PARTS

YWFES3330RZ0 03 – CONTROL PANEL PARTS

Written by

in

YWFES3330RZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1W11213290 Whirlpool Console
2BRACKET, CONTROL
3W11707152 Whirlpool Control Panel
4SWITCH-INF
5SCREW
6W11707155-includeCORE Whirlpool W11707155 Dishwasher Electronic Control Core
7KNOB
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WP3196557 Whirlpool Screw
13WP3196175 Whirlpool Screw
14W11443964 Whirlpool Support Bracket
15W10911303 Whirlpool Infinite Switch
