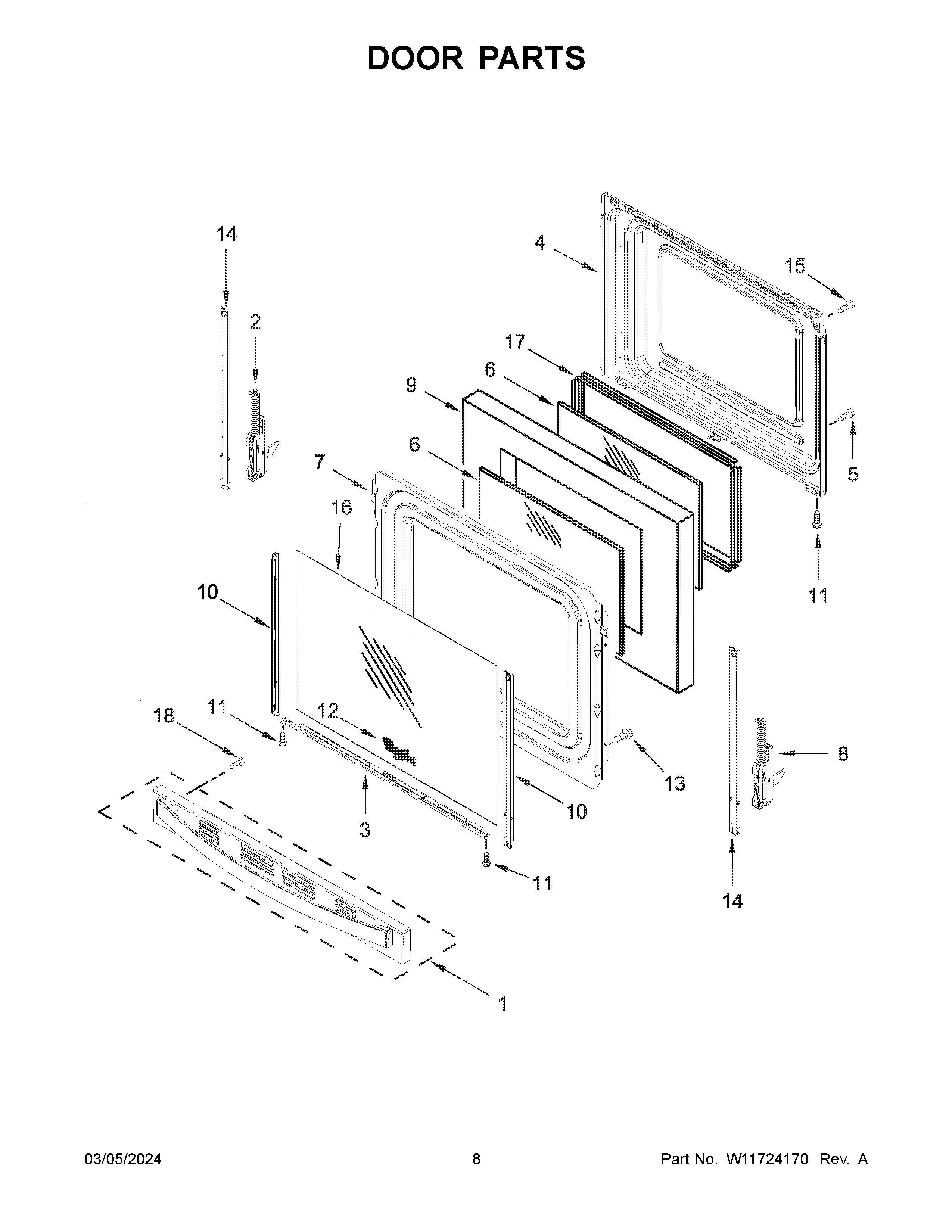

YWFES3530RB0 05 – DOOR PARTS

Products

PositionProduct
1HANDLE AND VENT ASSEMBLY (BLACK)
1AHNDLE-DOOR
2WPW10388635 Whirlpool Door Hinge
3AW11594186 Whirlpool Door Trim
3W11569689 Whirlpool Door Trim
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10440013 Whirlpool Door Hinge
9WPW10278991 Whirlpool Insulation
10CWP8523166 Whirlpool Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
10BWP8523172 Whirlpool Left Door Trim
10AW10761014 Whirlpool Right Door Trim
11WP355214 Whirlpool Screw
12W11178521 Whirlpool Dishwasher Nameplate
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16AGLASS-DOOR
16GLASS-DOOR
17WPW10316950 Whirlpool Window Frame
18W10896982 Whirlpool Compactor Screw
