YWFES5030RB0 03 – CONTROL PANEL PARTS – Aparts

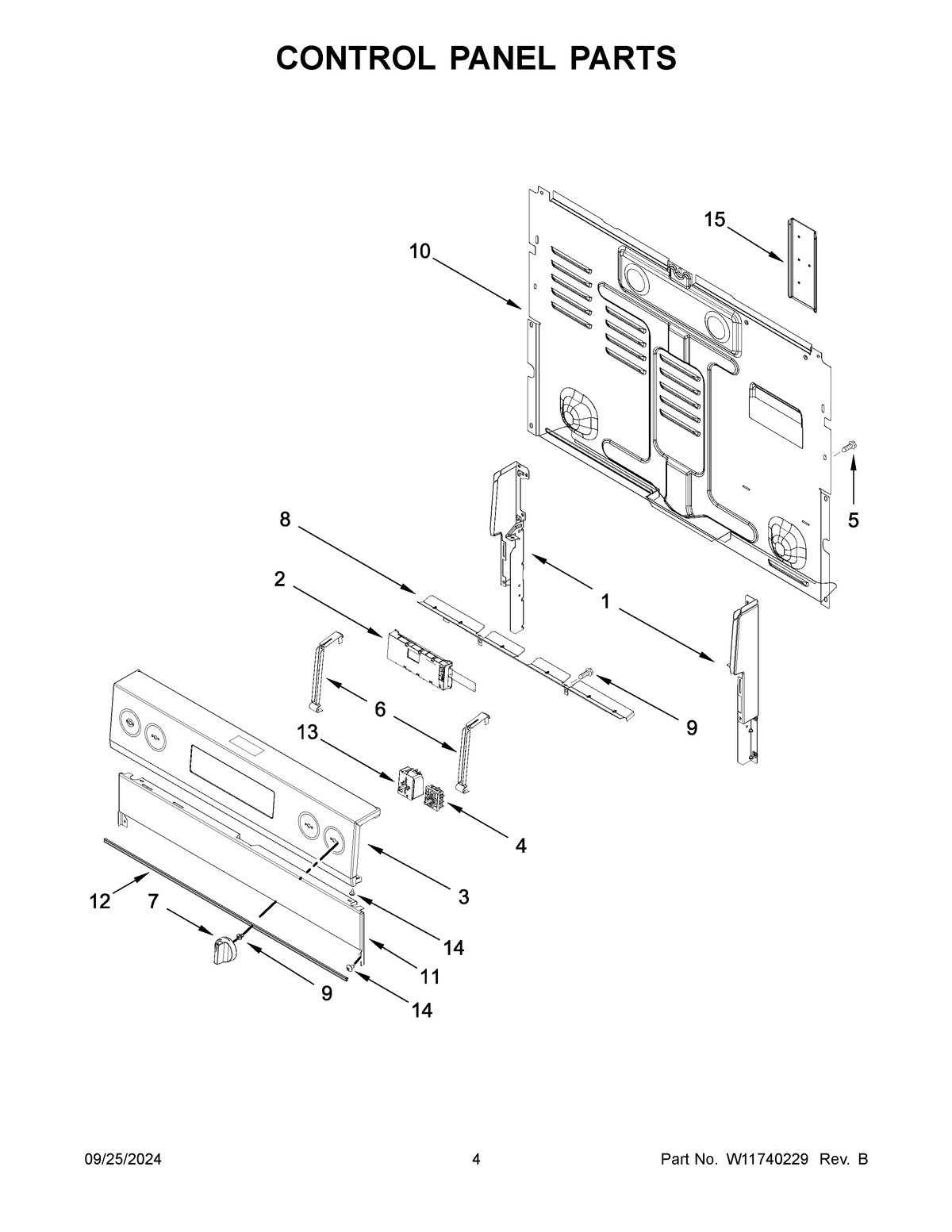

YWFES5030RB0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	ENDCAP-PNL
1	ENDCAP-PNL
3	PANEL, CONSOLE (BLACK)
4	SWITCH-INF
5	SCREW
6	BRACKET, CONTROL
7	KNOB (BLACK)
8	SHIELD, HEAT
9	WP3400882 Whirlpool Screw
10	COVER-REAR
11	PANEL, LOWER (BLACK)
12	GASKET, LOWER PANEL
13	W10911303 Whirlpool Infinite Switch
14	WP3196557 Whirlpool Screw
15	COVER, REAR FLUE
