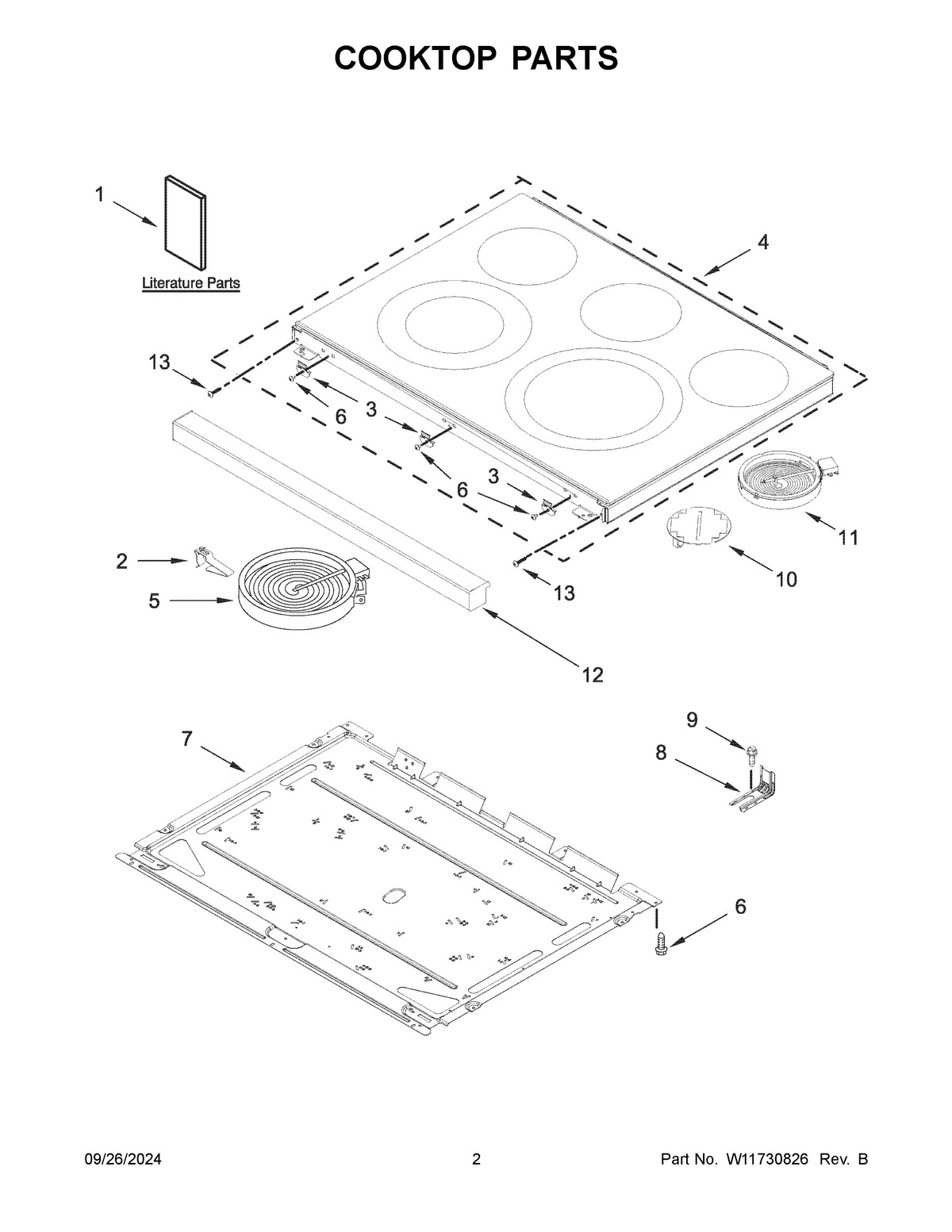

YWFES5030RZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11134592 Whirlpool Wire Harness
NI	W11172528 Whirlpool Harness Wire
NI	3196896 Whirlpool Clip
NI	HARNESS, COOKTOP
NI	HARNESS, MAIN
NI	3400964 Whirlpool Oven Clip
NI	FOLLOWING PARTS NOT ILLUSTRATED
1B	TECH SHEET
1	OWNER'S MANUAL
1A	QUICK START GUIDE
2	W11663556 Whirlpool Spring Assembly
3	BRACKET, COOKTOP
4	COOKTOP
5	W10823727 Whirlpool Stove Right Front Surface Element
5A	W11517959 Whirlpool Electric Range Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
10	ELEMENT, WARM ZONE (CENTER)
11	ELMNT-SURF
12	TRIM
13	Screw
