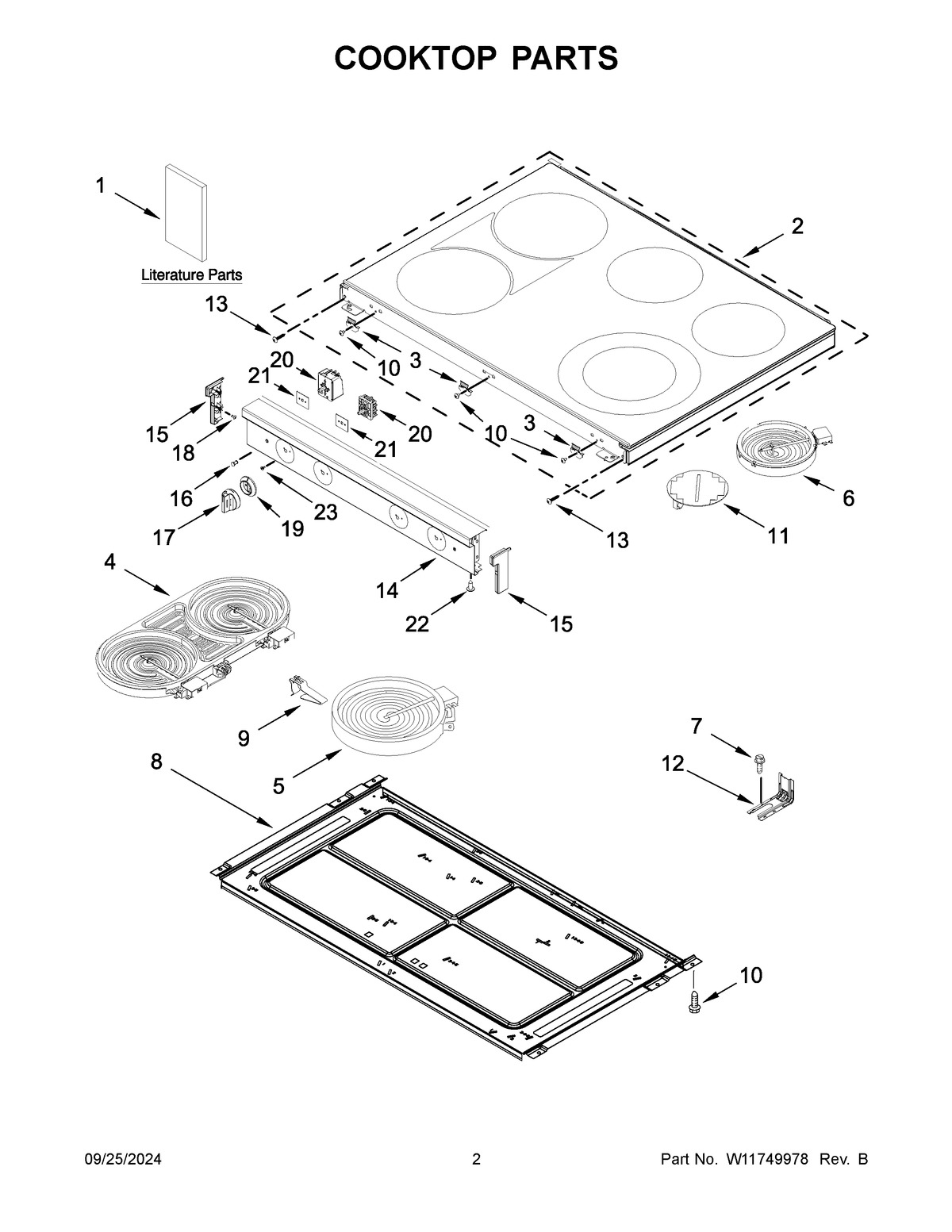

YWFES7530RB0 02 – COOKTOP PARTS

YWFES7530RB0 02 – COOKTOP PARTS

Written by

in

YWFES7530RB0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, HIDDEN BAKE
NIHARNESS, MAIN
NIHARNESS, WIRE
NIHARNESS, COOKTOP
NIHARNESS, FRONT DUAL
NIFOLLOWING PARTS NOT ILLUSTRATED
1BTECH, SHEET
1OWNERS MANUAL
1AQUICK START GUIDE
2COOKTOP
3BRACKET, COOKTOP
4BRIDGE, (1800W, 800W) (LEFT FRONT AND LEFT REAR)
5ELEMENT (3000W) (RIGHT FRONT)
6ELEMENT (SINGLE, 1200W) (RIGHT REAR)
7SCREW, ANTI-TIP KIT
8PAN, RADIANT ELEMENT
9W11663556 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
11ELEMENT, WARM ZONE (CENTER)
12W11447673 Whirlpool Range Tip Anchor
13Screw
14APANEL UPPER, MANIFOLD (WHITE)
14PANEL UPPER, MANIFOLD (BLACK)
15PANEL, MANIFOLD END CAP (BLACK (LEFT))
15BPANEL, MANIFOLD END CAP (WHITE (LEFT))
15APANEL, MANIFOLD END CAP (BLACK (RIGHT))
15CPANEL, MANIFOLD END CAP (WHITE (RIGHT))
16WP3196068 Whirlpool Light Lens
17AKNOB (DUAL, (BLACK))
17BKNOB (SINGLE, (WHITE))
17CKNOB (DUAL, (WHITE))
17KNOB (SINGLE, (BLACK))
18W11245710 Whirlpool Refrigerator Screw
19BEZEL (BLACK)
19ABEZEL (WHITE)
20SWITCH-INF
21GASKET, SWITCH
22SCREW
237101P676-60 Whirlpool Screw
