YWFES7530RB0 03 – CONTROL PANEL PARTS
Written by
in

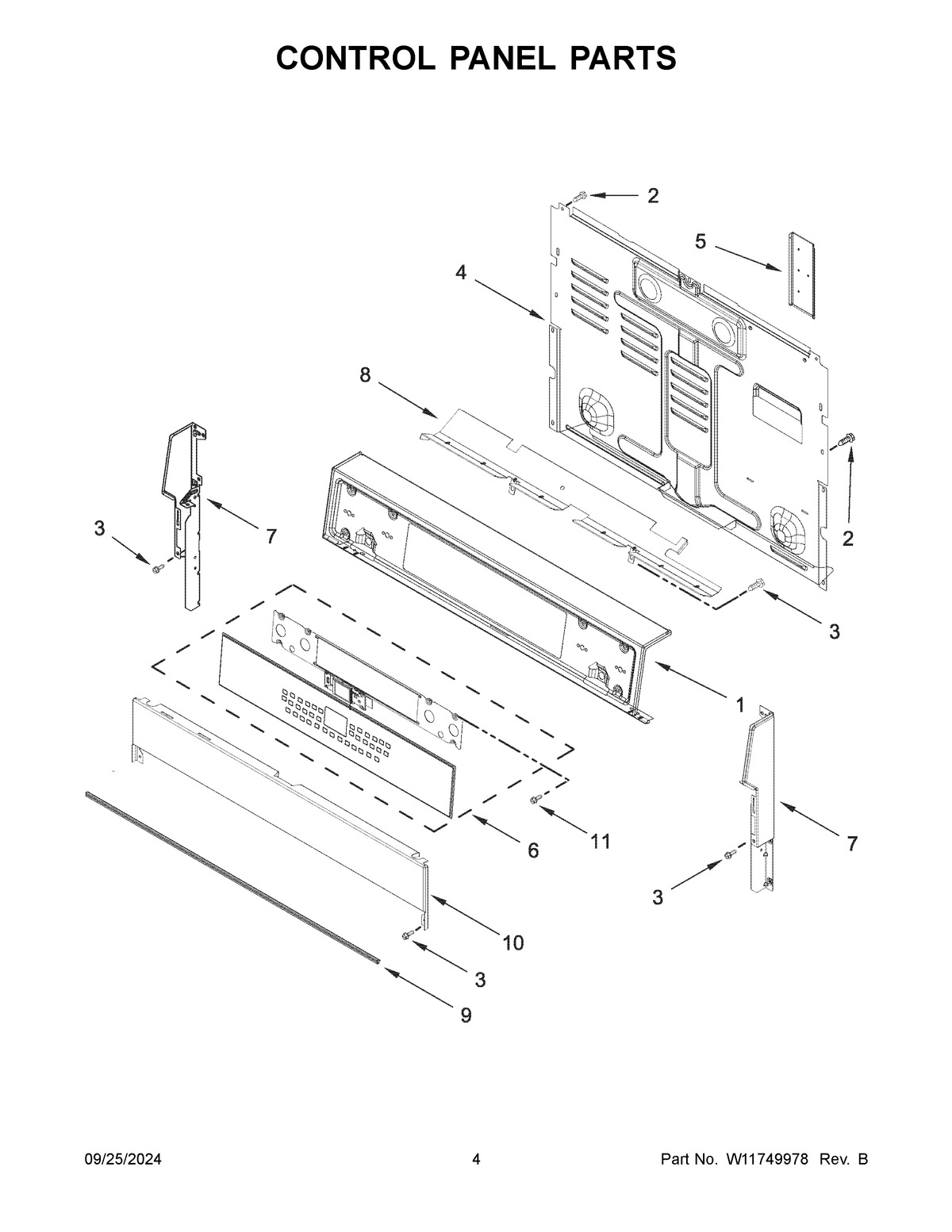

YWFES7530RB0 03 – CONTROL PANEL PARTS
Products
Position
Product
1A
CONSOLE (WHITE)
1
CONSOLE (BLACK)
2
SCREW
3
WP3196557 Whirlpool Screw
4B
W10911303 Whirlpool Infinite Switch
4A
W11661906 Whirlpool Range Infinite Switch
4
COVER, UPPER REAR (LEFT FRONT AND RIGHT FRONT)
5
COVER, REAR FLUE
6
W11729976-includeCORE Whirlpool Electronic Control+Core
7B
ENDPOST, CONSOLE (WHITE (LEFT))
7
ENDPOST, CONSOLE (BLACK (LEFT))
7A
ENDPOST, CONSOLE (BLACK (RIGHT))
7C
ENDPOST, CONSOLE (WHITE (RIGHT))
8
SHIELD, HEAT
9
GASKET, LOWER PANEL
10
PANEL, LOWER (BLACK)
10A
PANEL, LOWER (WHITE)
11
W10491985 Whirlpool Screw
←
