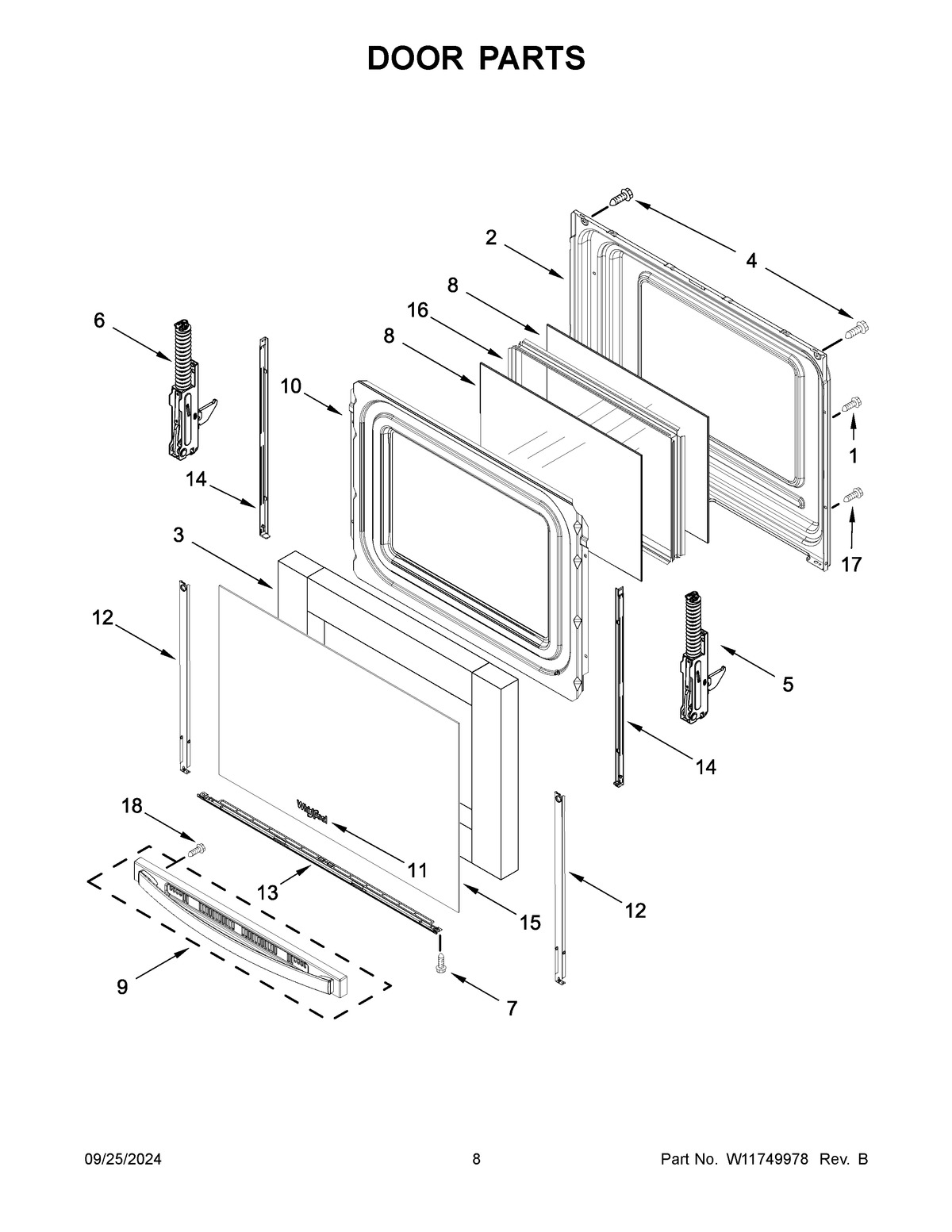

YWFES7530RB0 05 – DOOR PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4	WPW10200660 Whirlpool Range Oven Door Handle Screw
5	WPW10388635 Whirlpool Door Hinge
6	WPW10440013 Whirlpool Door Hinge
7	WP355214 Whirlpool Screw
8	WP8053948 Whirlpool Door Glass
9	HANDLE AND VENT ASSEMBLY (BLACK)
9A	HNDLE-DOOR
10	W11539580 Whirlpool Retainer
11	W11178521 Whirlpool Dishwasher Nameplate
12	W10761018 Whirlpool Dishwasher Left Door Trim
12B	WP8523172 Whirlpool Left Door Trim
12C	WP8523166 Whirlpool Door Trim
12A	W10761014 Whirlpool Right Door Trim
13	W11569689 Whirlpool Door Trim
13A	W11594186 Whirlpool Door Trim
14	W11502236 Whirlpool Door Trim
15A	GLASS-DOOR
15	GLASS-DOOR
16	WPW10316950 Whirlpool Window Frame
17	W10777162 Whirlpool Screw
18	W10896982 Whirlpool Compactor Screw
