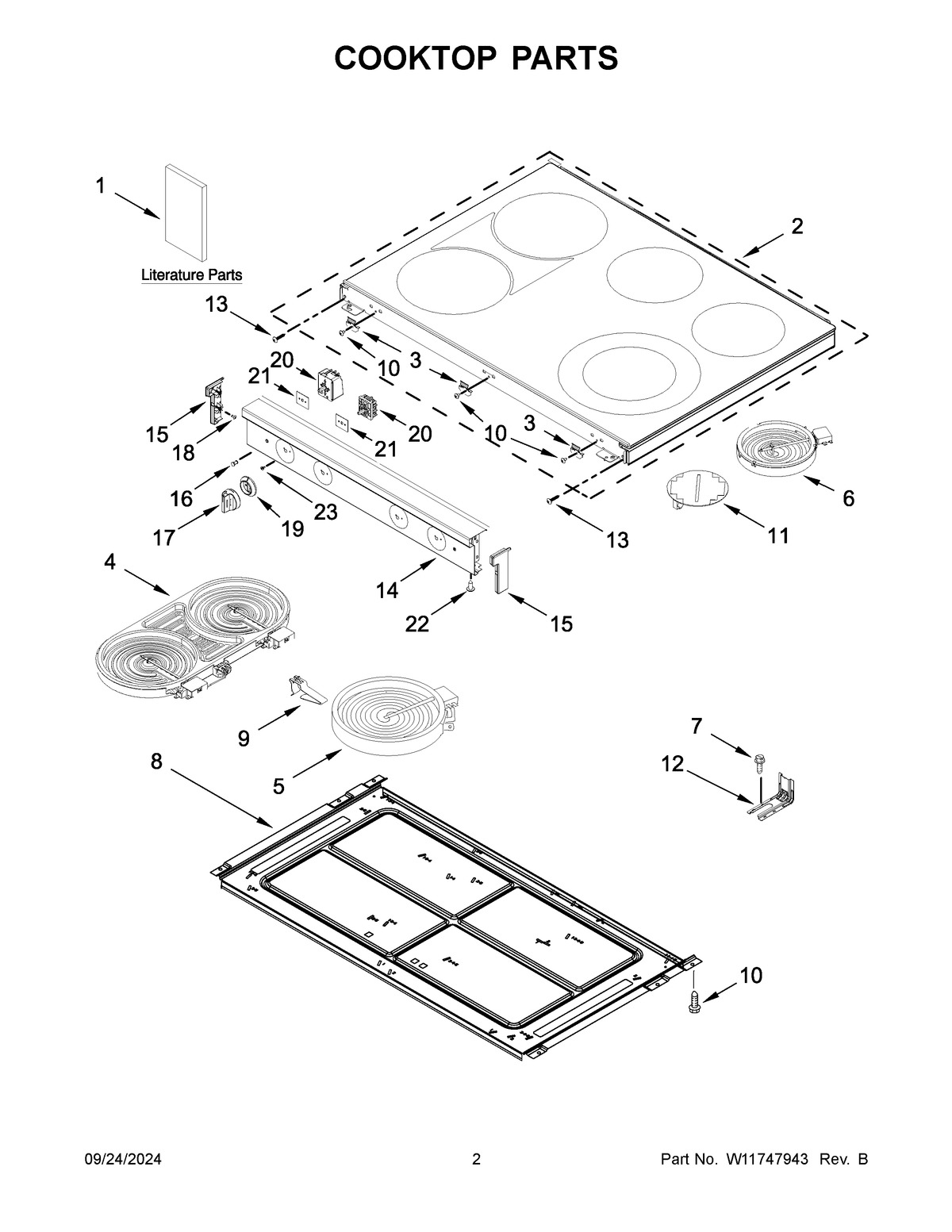

YWFES7530RZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	HARNESS, FRONT DUAL
NI	HARNESS, WIRE
NI	HARNESS, MAIN
NI	HARNESS, HIDDEN BAKE
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	OWNERS MANUAL
1B	TECH, SHEET
1A	QUICK START GUIDE
2	COOKTOP
3	BRACKET, COOKTOP
4	BRIDGE, (1800W, 800W) (LEFT FRONT AND LEFT REAR)
5	ELEMENT (3000W) (RIGHT FRONT)
6	ELEMENT (SINGLE, 1200W) (RIGHT REAR)
7	SCREW, ANTI-TIP KIT
8	PAN, RADIANT ELEMENT
9	W11663556 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	ELEMENT, WARM ZONE (CENTER)
12	W11447673 Whirlpool Range Tip Anchor
13	Screw
14	PANL-MNFLD
15	ENDCAP-PNL
15A	ENDCAP-PNL
16	WP3196068 Whirlpool Light Lens
17A	KNOB (DUAL, (STAINLESS))
17	KNOB (SINGLE, (STAINLESS))
18	W11245710 Whirlpool Refrigerator Screw
19	BEZEL (STAINLESS)
20	SWITCH-INF
21	GASKET, SWITCH
22	SCREW
23	7101P676-60 Whirlpool Screw
