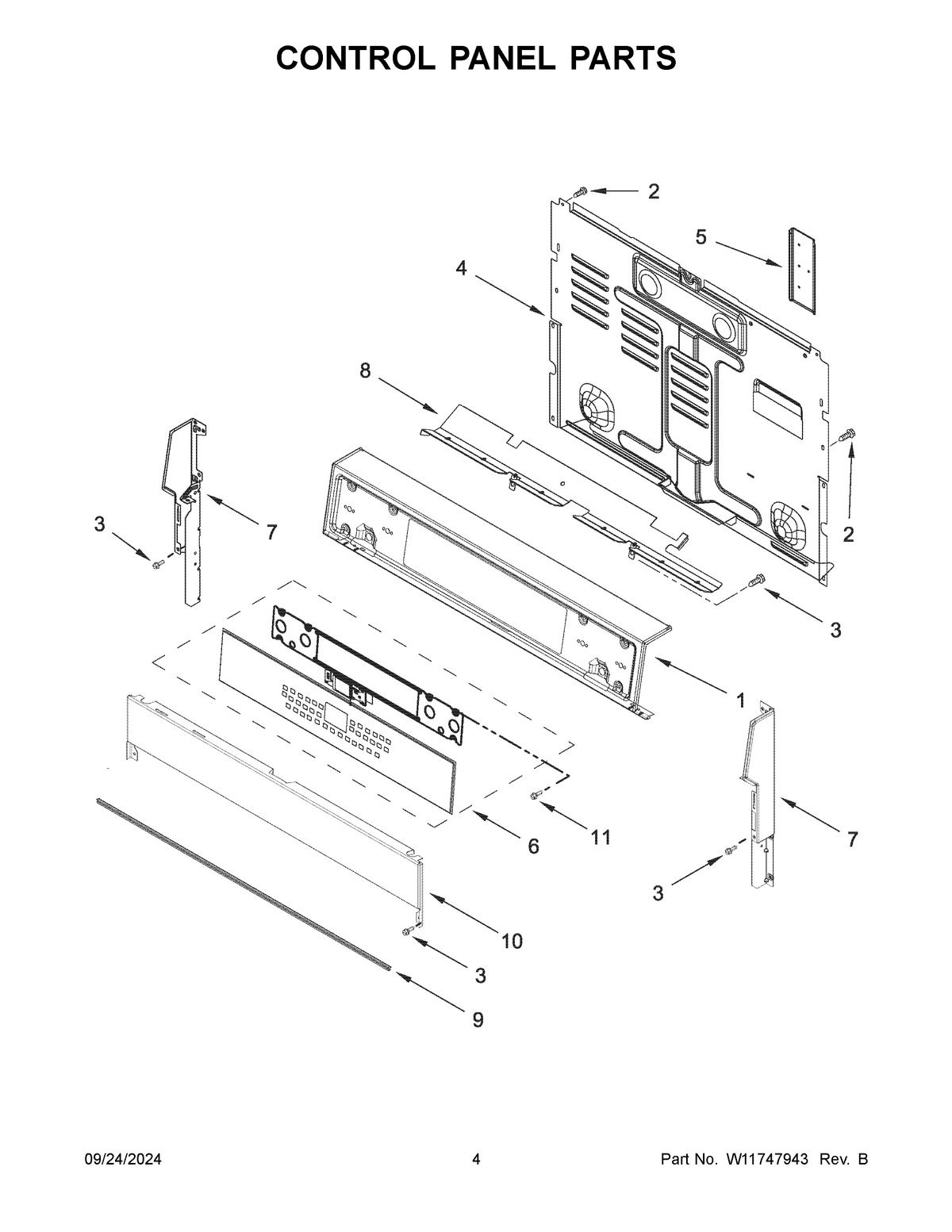

YWFES7530RZ0 03 – CONTROL PANEL PARTS

YWFES7530RZ0 03 – CONTROL PANEL PARTS

Written by

in

YWFES7530RZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1PANL-CNTRL
2SCREW
3WP3196557 Whirlpool Screw
4BW10911303 Whirlpool Infinite Switch
4AW11661906 Whirlpool Range Infinite Switch
4COVER, UPPER REAR (LEFT FRONT AND RIGHT FRONT)
5COVER, REAR FLUE
6W11729976-includeCORE Whirlpool Electronic Control+Core
7AENDPOST, CONSOLE (BLACK (RIGHT))
7ENDPOST, CONSOLE (BLACK (LEFT))
8SHIELD, HEAT
9GASKET, LOWER PANEL
10PANEL, LOWER (STAINLESS)
11W10491985 Whirlpool Screw
