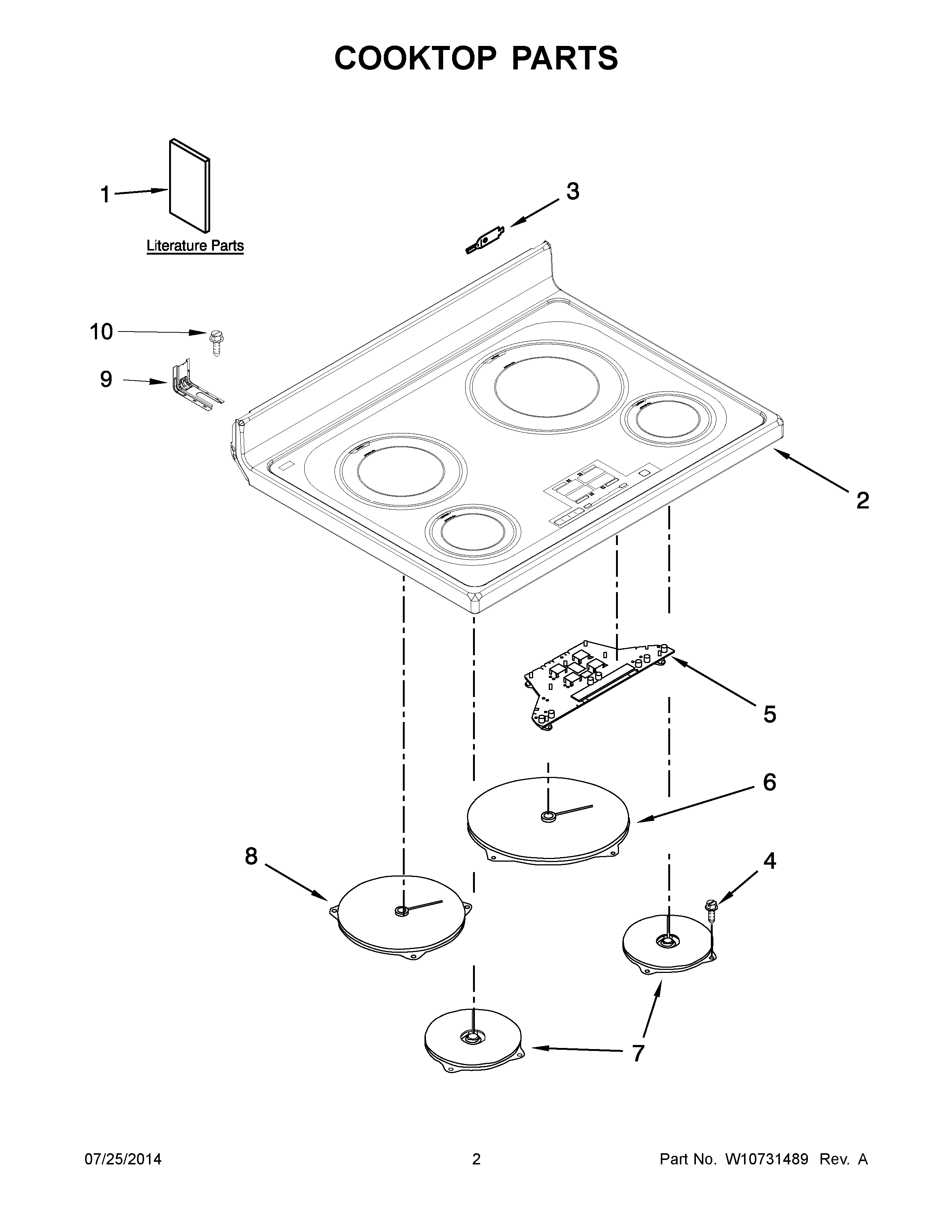

YWFI910H0AS1 02 – COOKTOP PARTS

YWFI910H0AS1 02 – COOKTOP PARTS

Written by

in

YWFI910H0AS1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIWIRING HARNESS PARTS, HARNESS, MAIN
NIW10324944 Whirlpool Wire Harness
NIW10324946 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, SCREW, GROUND
1CDIAGRAM, WIRING
1DDIAGRAM, MRC
1BGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
1EQUICK START GUIDE
1ASAFER COOKING TIPS (ENGLISH
2W10514689 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WP3196557 Whirlpool Screw
5W10818314 Whirlpool Display Assembly
6WPW10410579 Whirlpool Hot Plate
7WPW10410580 Whirlpool Hot Plate
8WPW10410578 Whirlpool Hot Plate
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
