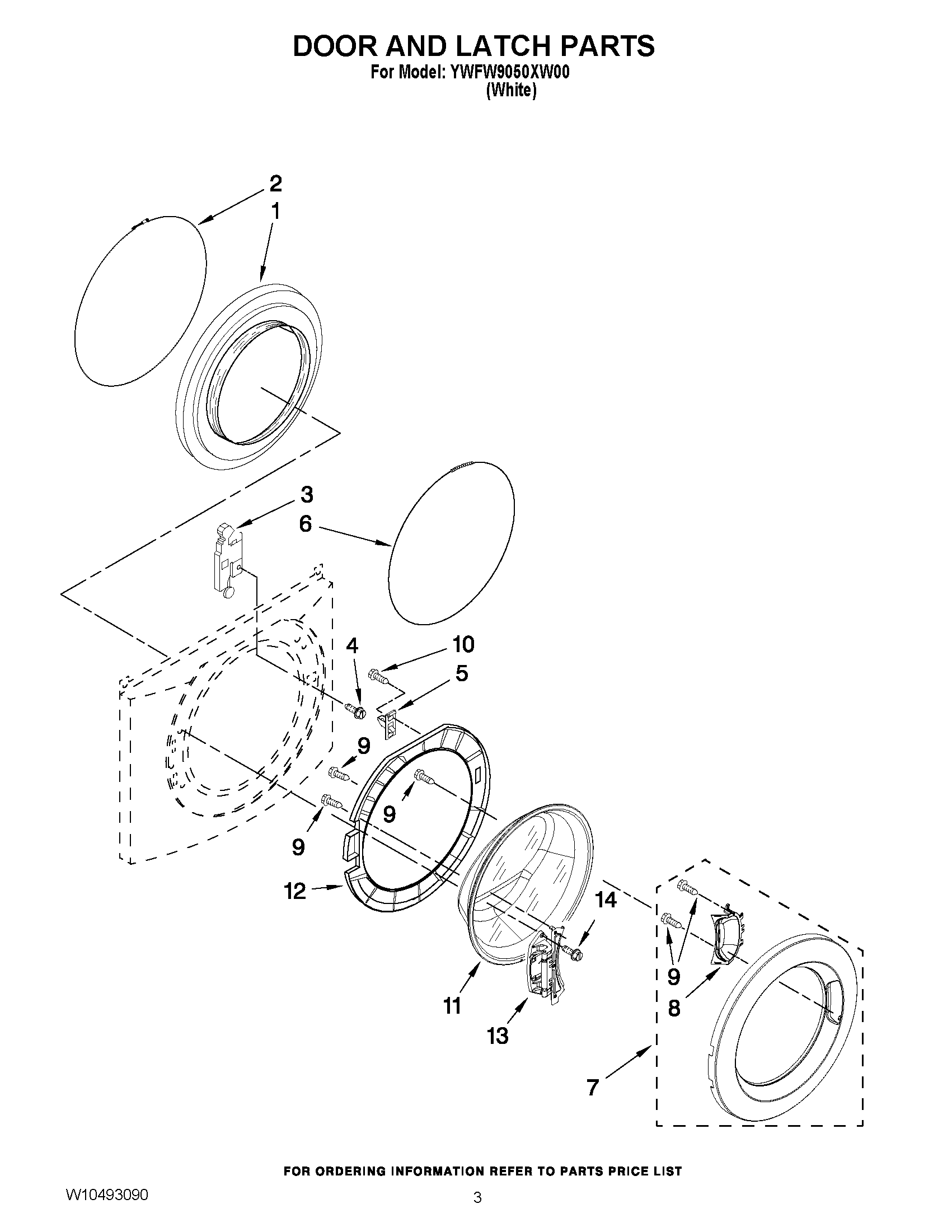

YWFW9050XW00 02 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10381562 Whirlpool Front Load Washer Door Boot
2	WP8540108 Whirlpool Boot Spring Clamp
3	WPW10253483 Whirlpool Latch
4	WP8540725 Whirlpool Screw Assembly
5	WP8540221 Whirlpool Door Strike Assembly
6	W11032829 Whirlpool Clamp Assembly
7	WPW10300867 Whirlpool Frame Assembly
8	W10300865 Whirlpool Handle Assembly
9	WP8540282 Whirlpool Screw
10	W11230114 Whirlpool Screw Assembly
11	WPW10388315 Whirlpool Glass Door
12	WPW10207904 Whirlpool Frame
13	WPW10210893 Whirlpool Hinge
14	WP489442 Whirlpool Refrigerator Screw
